Removal

REMOVAL

1. Lower door window glass.
2. Remove door trim panel. Rear Door Trim Panel - Removal.
3. Remove watershield as necessary. Removal.
4. Remove inner belt weatherstrip




5. Remove screws attaching outer belt molding, one at the inside of the rear door shut face at the B-pillar and one at the inside of the rear door shut face at the C-pillar.

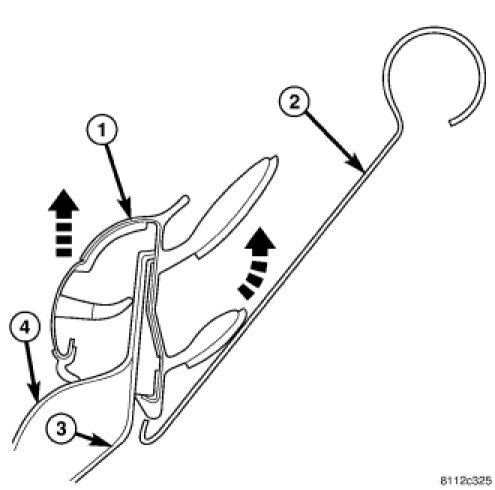

6. Remove outer belt molding using Outer Door Belt Molding Remover 9093.

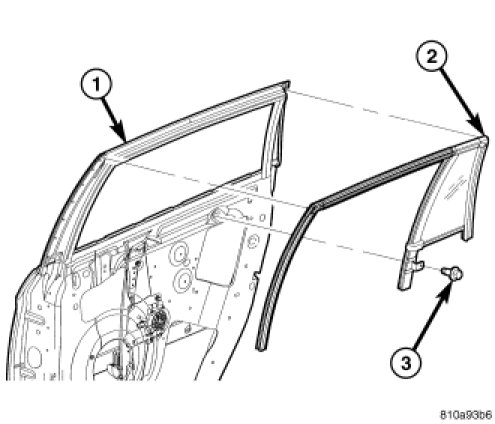

7. Remove screw attaching glass run to door panel.
8. Using a Trim Stick C-4755 or equivalent and hand, pull down on glass run and disengage from window frame channel.




9. Remove fixed glass run channel from door.

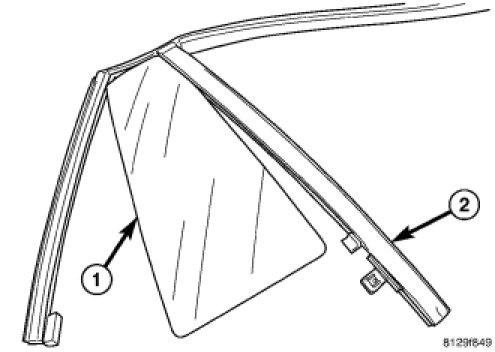

10. Remove quarter glass from fixed glass run channel.
