Installation

INSTALLATION





The temperature of the vehicle should be at least 21° C (70° F) before removing quarter glass. Butyl sealer becomes more pliable at high temperatures.

The stationary glass fence should be cleaned of all old butyl sealer.

1. Apply a 6 mm (0.25 in.) butyl tape around perimeter of glass assembly encapsulation track. Ensure that the butyl tape is wrapped around the mounting studs.

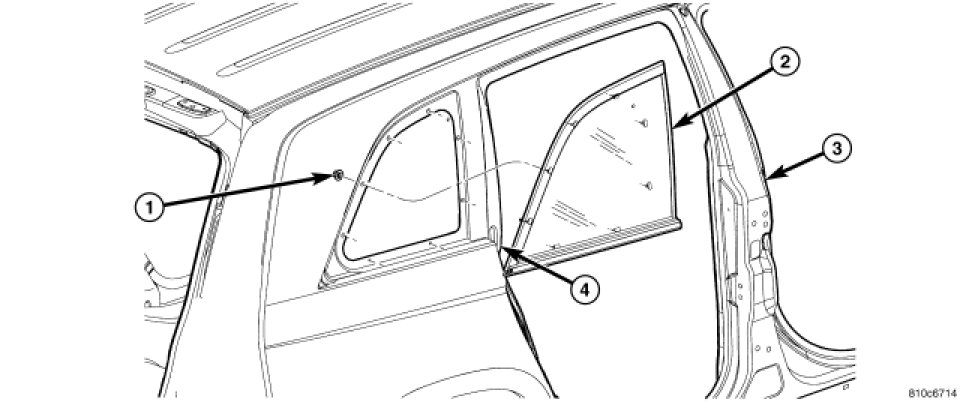

2. Place quarter window glass into position and insert mounting studs through holes in fence.
3. Start the nuts and washers. Tighten nuts in sequence. Start with the lower C-pillar nut and work around glass, tighten to 3 Nm (30 in. lbs.).
4. Water test quarter window glass to verify repair.
5. Connect antenna wire (right side only).
6. Install the C-pillar trim panel. C-Pillar Trim Panel-Installation.
