Front Door Glass - Installation

INSTALLATION

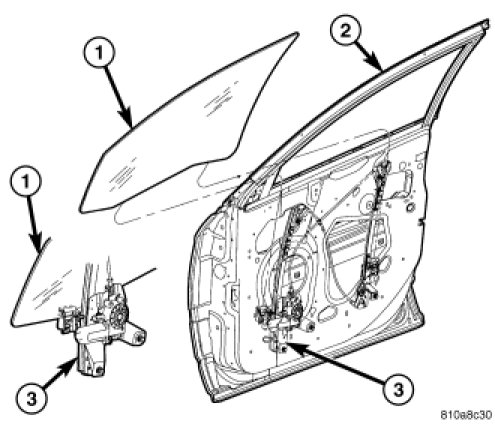

1. Place glass in window opening with front inserted between run channel and outer door panel.
2. Lower glass downward into door.
3. Insert ends of glass into glass run weatherstrip channels at front and rear of door.
4. Place glass in position on regulator clamp brackets.
5. Tighten the glass clamp nuts to 9.0 Nm (80 in. lbs.).
6. Install inner belt molding.
7. Verify door glass operation and fit.
8. Install watershield. Installation.
9. Remove door trim panel. Front Door Trim Panel - Installation.
