Heated Glass Element Relay: Diagrams

Component ID: 231

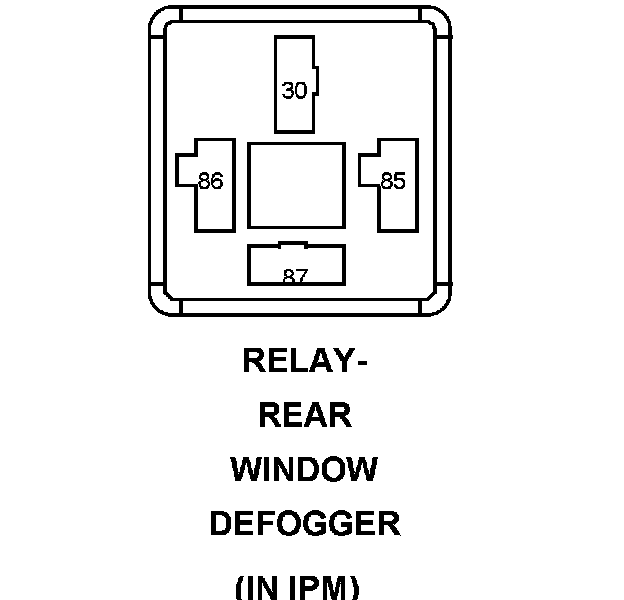

Component : RELAY-REAR WINDOW DEFOGGER

Connector:
Name : RELAY-REAR WINDOW DEFOGGER
Color :
# of pins : 0




30 INTERNAL FUSED B(+)
85 INTERNAL FUSED B(+)
86 INTERNAL REAR WINDOW DEFOGGER RELAY CONTROL
87 C15 12DB/WT REAR WINDOW DEFOGGER RELAY OUTPUT
87A - -
