Transmission Control System Relay: Diagrams

Component ID: 234
Component : RELAY-TRANSMISSION CONTROL

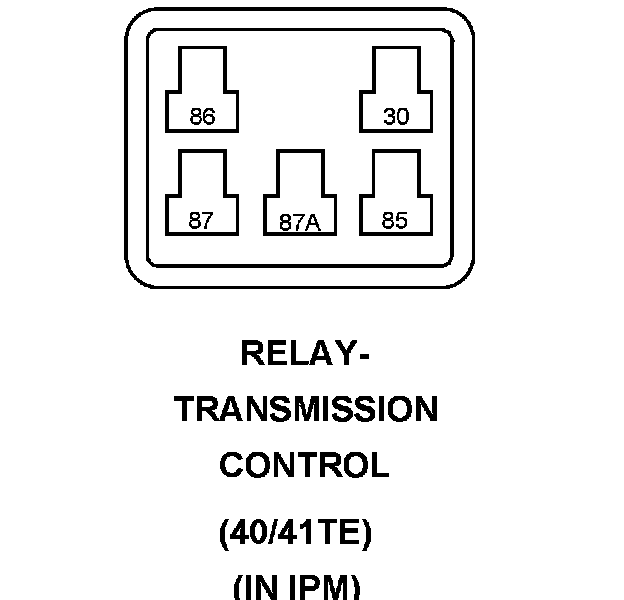

Connector:
Name : RELAY-TRANSMISSION CONTROL
Color :
# of pins : 0
Qualifier : (40/41TE)




30 INTERNAL FUSED B(+)
85 T15 20YL/BR TRANSMISSION CONTROL
86 Z115 18BK/OR GROUND
87 T16 16YL/OR TRANSMISSION CONTROL OUTPUT
87A - -

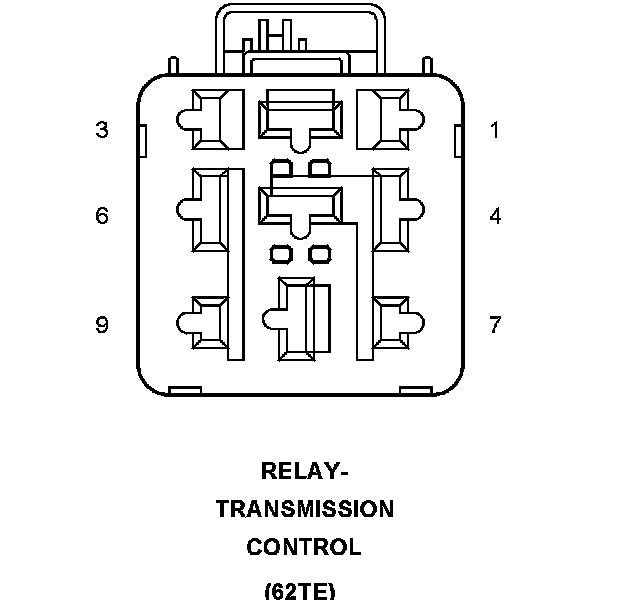

Connector:
Name : RELAY-TRANSMISSION CONTROL
Color :
# of pins : 9
Qualifier : (62TE)




Pin Circuit Description
1 - -
2 T16 14YL/OR TRANSMISSION CONTROL OUTPUT
3 - -
4 T15 14YL/BR TRANSMISSION CONTROL
5 - -
6 Z115 18BK/OR GROUND
7 - -
8 A104 14YL/RD FUSED B(+)
9 - -
