Propeller Shaft - Installation

INSTALLATION





CAUTION: Propeller shaft installation is a two-man operation. Never allow propeller shaft to hang while connected to power transfer unit (PTU), rear driveline module flanges or center bearings. If propeller shaft section is hung unsupported, damage may occur to joint, boot and/or center bearing from over-angulation. This may result in vibration/balance issues. A helper is required.

1. Make sure transaxle is in Neutral (N) position.

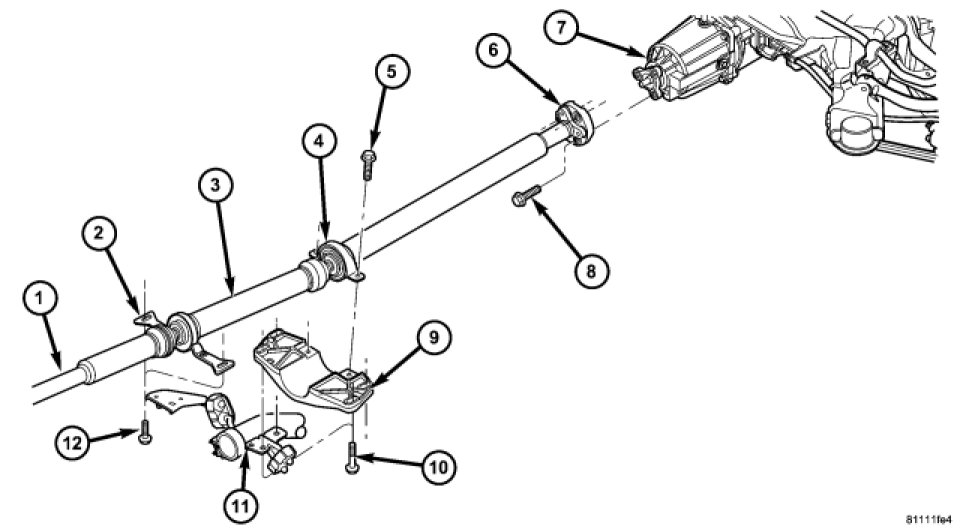

2. Obtain a helper and lift propeller shaft assembly into position. Load shaft to driveline module (7) first, and then PTU flange.
3. Install center and rear support bearing/bracket assemblies into position (10). Install bolts hand-tight.
4. Align paint index marks at driveline module flange and install three propeller shaft rubber coupler-to-rear driveline module bolts (8) by hand. Torque propeller shaft rubber coupler-to-rear driveline module assembly bolts to 54 Nm (40 ft. lbs.).

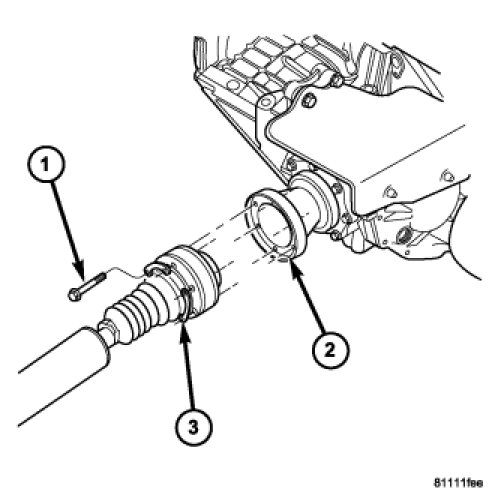

5. Align chalk index marks at PTU flange. Install six propeller shaft-to-PTU flange bolts(1) and torque to 30 Nm (22 ft. lbs.). Torque bolts alternately to ensure proper flange mating.
6. Place center and rear bearing/supports into position. Install and torque support/bearing-to-body bolts to 54 Nm (40 ft. lbs.).
7. Raise exhaust system into position. Install muffler rear hanger. Remove support stand.
8. Install exhaust system center hanger
9. Lower vehicle.
