Home >> Chrysler >> 2008 >> Pacifica V6-4.0L >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Seals and Gaskets >> Service and Repair >> Removal

Removal



REMOVAL

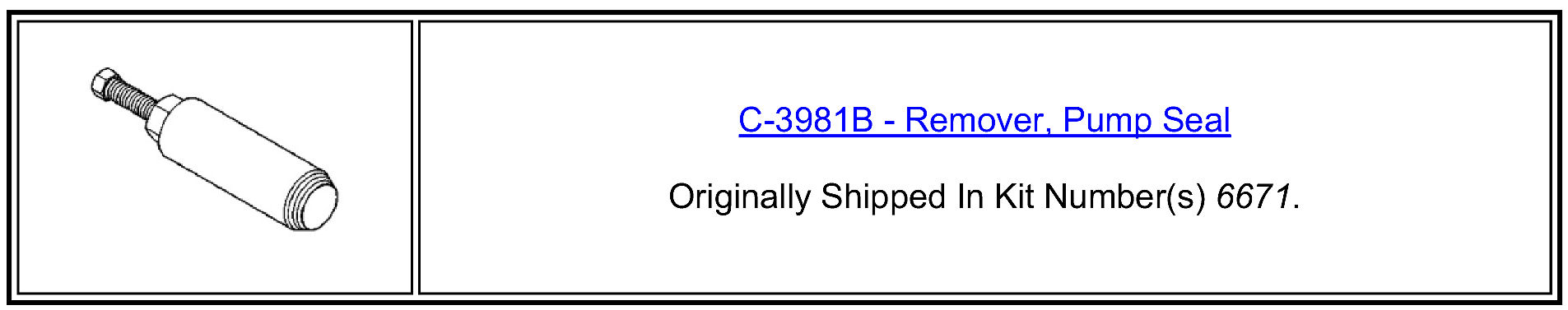

Special Tools







1. Remove transaxle from vehicle. Removal and Replacement

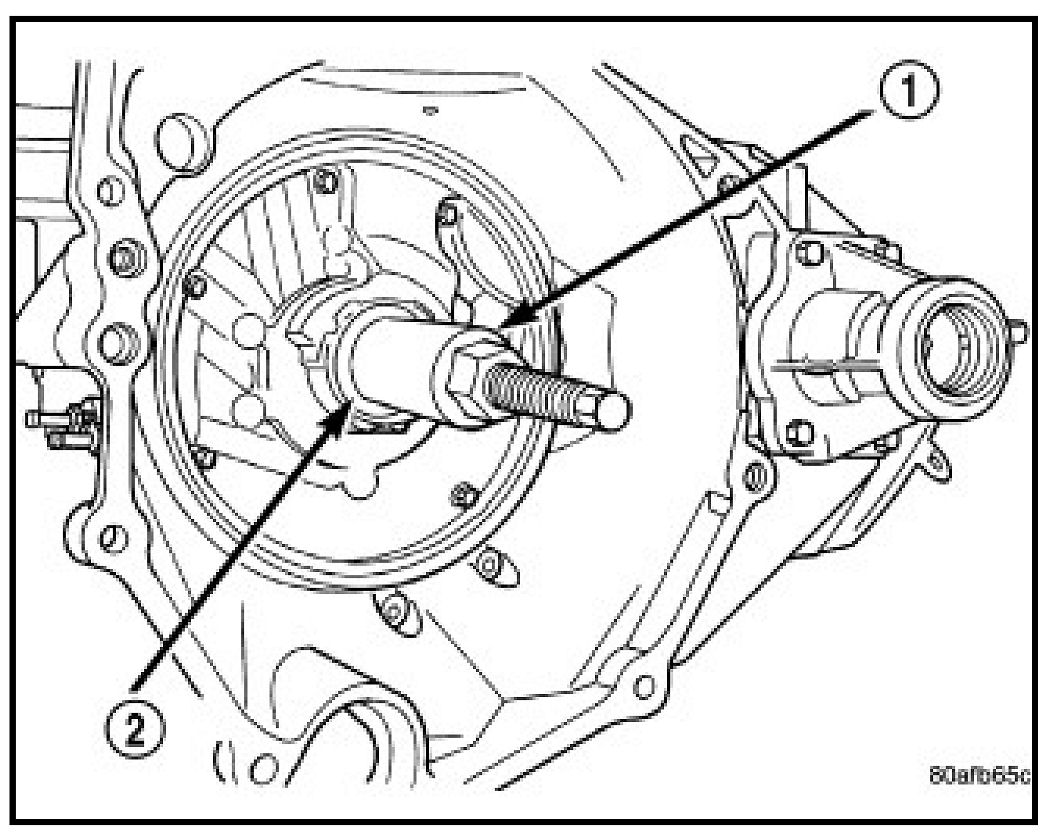

2. Using Seal Puller C-3981B (1), remove oil pump seal (2).
