Installation

INSTALLATION

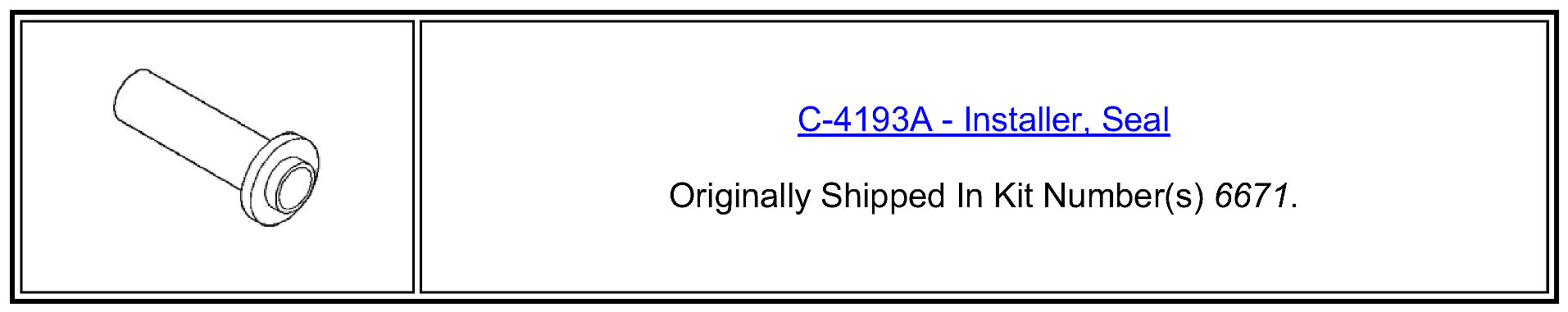

Special Tools

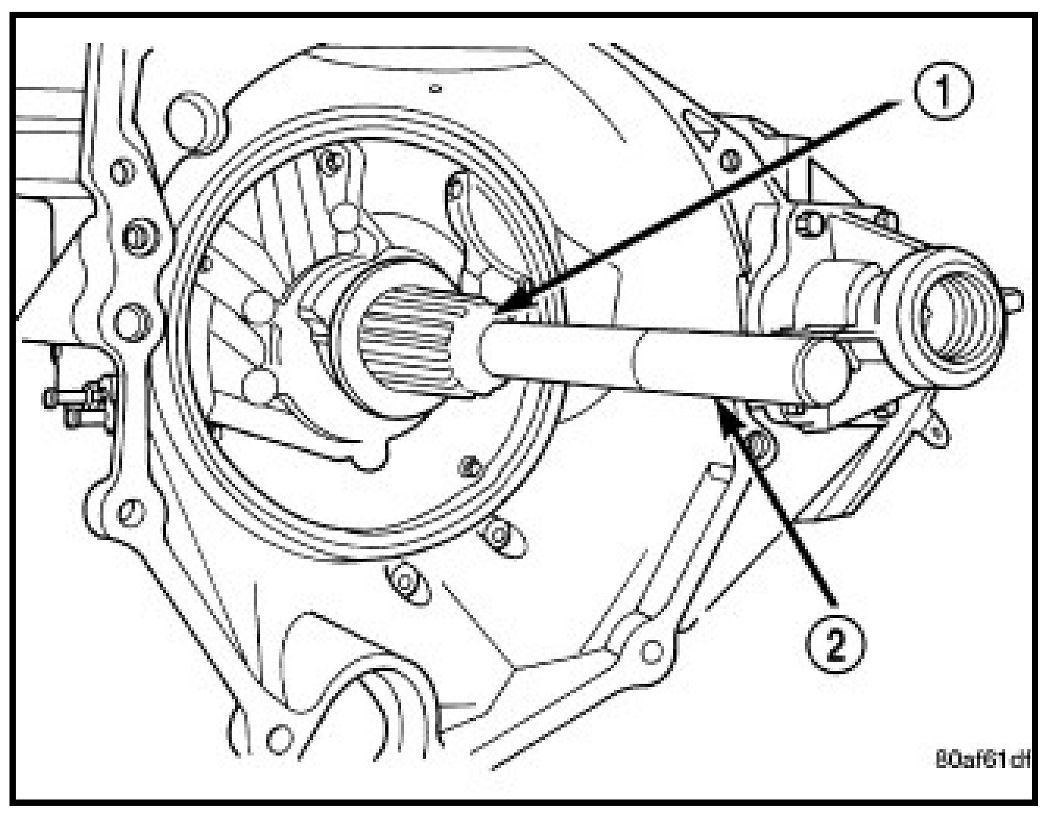

1. Using Seal Installer C-4193A (1), install oil pump seal.
2. Install transaxle to vehicle. Removal and Replacement
