Installation

INSTALLATION





1. Guide ball joint end of spring link (3) into mounting pocket of knuckle, then swing opposite end up to bushing in crossmember (1) and install bolt and nut (4) fastening spring link to crossmember. Do not tighten bolt at this time.

NOTE: Prior to using Special Tool 9050A, lubricate Bolt threads to provide ease of use and promote tool longevity.

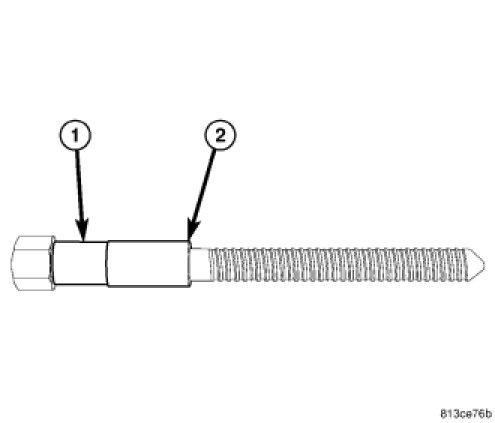

2. Place new knuckle sleeve (2) onto Installer Bolt (1), Special Tool 9050-4, and slide it up to Bolt's head.




3. Install NEW sleeve in knuckle as follows:

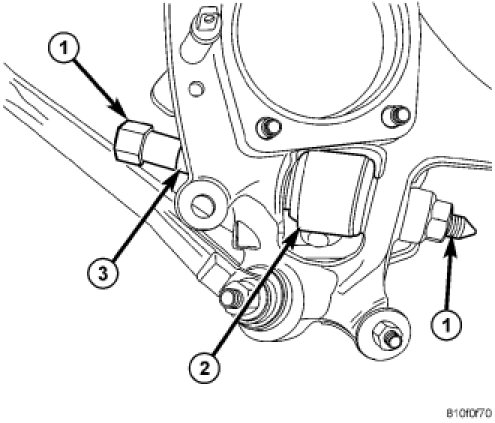

a. Slide Installer Bolt 9050A-4 (1) (with sleeve (3)) through knuckle and spring link ball joint (2) starting from forward end of knuckle.
b. Install thrust bearing and nut on end of Bolt. When installing thrust bearing on Installer Bolt, be sure to place hardened side toward nut.

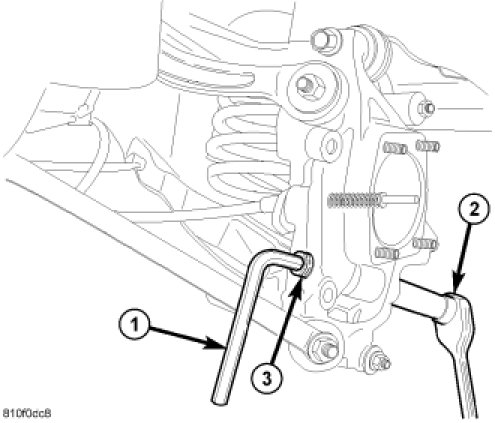

c. While holding Bolt head stationary, rotate Nut (using hand tools) installing sleeve in knuckle. Install sleeve until Nut can no longer be turned. Do not overtighten Nut.
d. Remove tool.




4. Install spring link-to-knuckle bolt (3) and nut as shown. While holding bolt head stationary, tighten nut to 129 Nm (95 ft. lbs.).
5. Install rear spring as well as all components necessary to access it. Rear Hub / Bearing - Installation
6. Lower vehicle.
7. Position vehicle on alignment rack/drive-on hoist. Raise vehicle as necessary to access mounting bolt.
8. Tighten spring link bolt at crossmember to 108 Nm (80 ft. lbs.).
9. Perform wheel alignment. Service and Repair
