Installation

4.0L

NOTE: Before attaching cooler loop to power steering pump, install a new O-ring on end of cooler loop. Lubricate O-ring using clean power steering fluid.





1. Place cooler loop (1) in mounted position against rear of engine cradle (3).

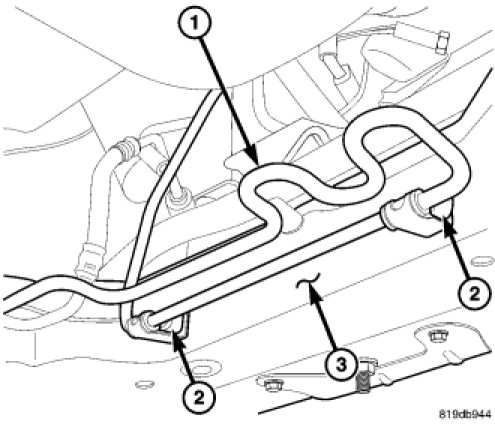

2. Install screws (2) fastening cooler loop (1) to engine cradle (3). Tighten screws to 10 Nm (90 in. lbs.).




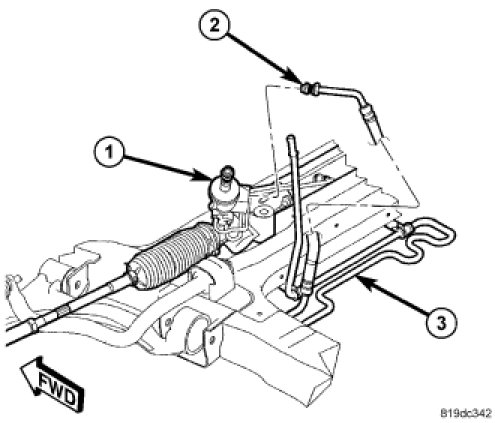

3. Install cooler loop into power steering gear (1) port. Thread tube nut (2) into gear and tighten to 31 Nm (275 in. lbs.).




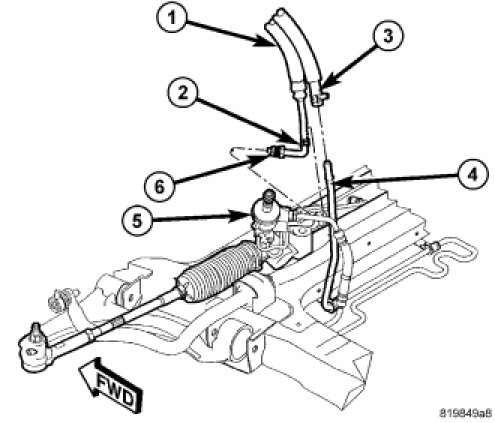

4. Install return hose (3) at cooler loop (4).

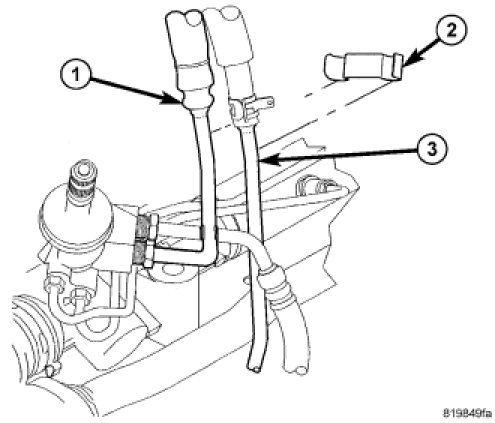

5. Install routing clip (2) between pressure hose (1) tube and cooler loop tube (3).
6. Lower vehicle.
7. Fill and bleed power steering system. Service and Repair
8. Inspect for leaks.
