Starter Relay: Diagrams

Component ID: 233

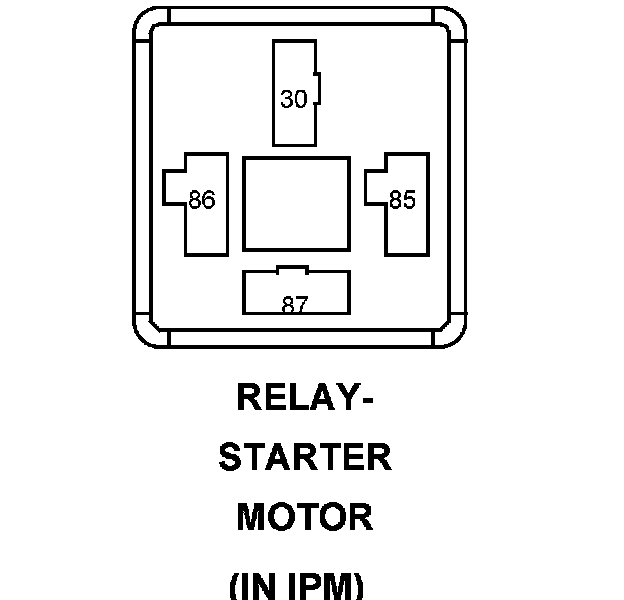

Component : RELAY-STARTER MOTOR

Connector:
Name : RELAY-STARTER MOTOR
Color :
# of pins : 0




30 INTERNAL FUSED B(+)
85 T751 20YL IGNITION SWITCH OUTPUT (START)
86 T752 20DG/OR STARTER RELAY CONTROL
87 T750 12YL/GY STARTER MOTOR RELAY OUTPUT
87A - -
