Accessory Relay: Diagrams

Component ID: 221

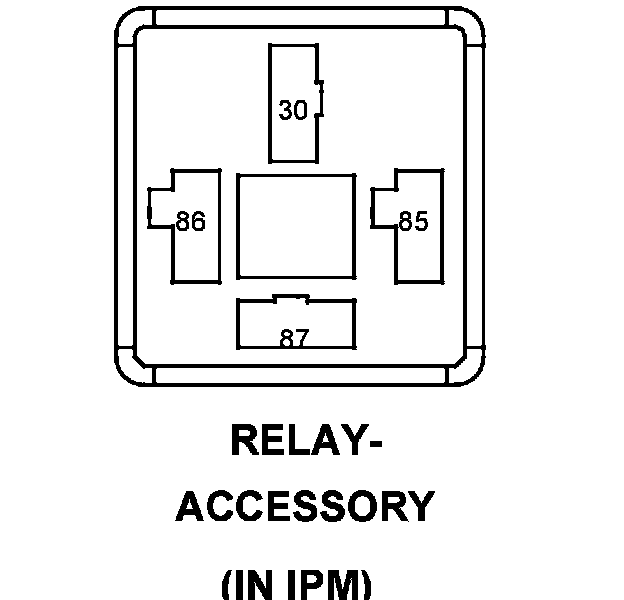

Component : RELAY-ACCESSORY

Connector:
Name : RELAY-ACCESSORY
Color :
# of pins : 0




30 INTERNAL B(+)
85 INTERNAL B(+)
86 INTERNAL ACCESSORY RELAY CONTROL
87 INTERNAL FUSED ACCESSORY RELAY OUTPUT
87A - -
