Generator - Installation

4.0L

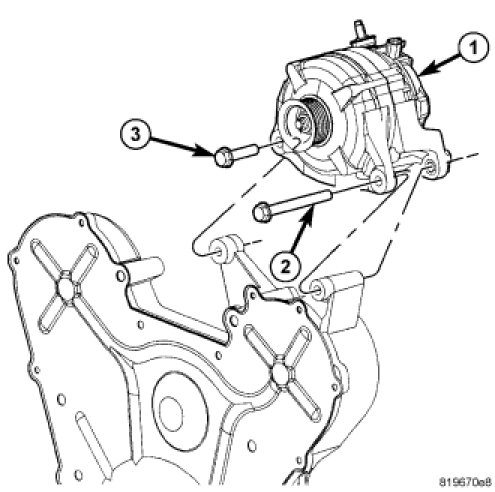

1. Position generator (1) to engine and install mounting bolts (2) and (3). Tighten both bolts to 54 Nm (40 ft. lbs.).

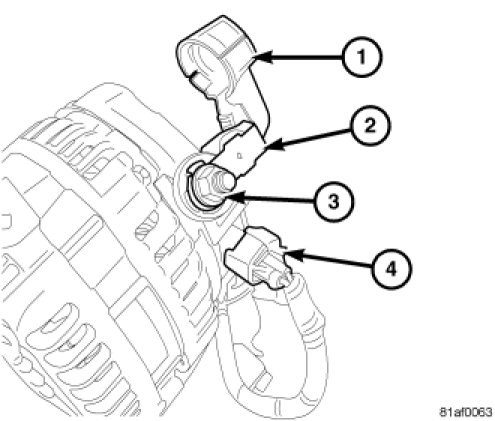

2. Connect field wire connector (4) into generator.
3. Install B+ terminal (3) and nut (2) to generator mounting stud. Tighten nut to 13 Nm (115 in. lbs.)
4. Snap plastic protective cover (1) to B+ terminal.

CAUTION: Never force a belt over a pulley rim using a screwdriver. The synthetic fiber of the belt can be damaged.

CAUTION: When installing a serpentine accessory drive belt, the belt MUST be routed correctly. The water pump will be rotating in the wrong direction if the belt is installed incorrectly, causing the engine to overheat. Refer to belt routing label in engine compartment, or refer to Belt Schematics in Cooling System.

5. Install drive belt, Accessory Drive Belt - Installation.
6. Connect negative battery cable, tighten nut to 4.5 Nm (40 in. lbs.).
