Battery: Locations

Component ID: 23
Component : BATTERY

Connector:

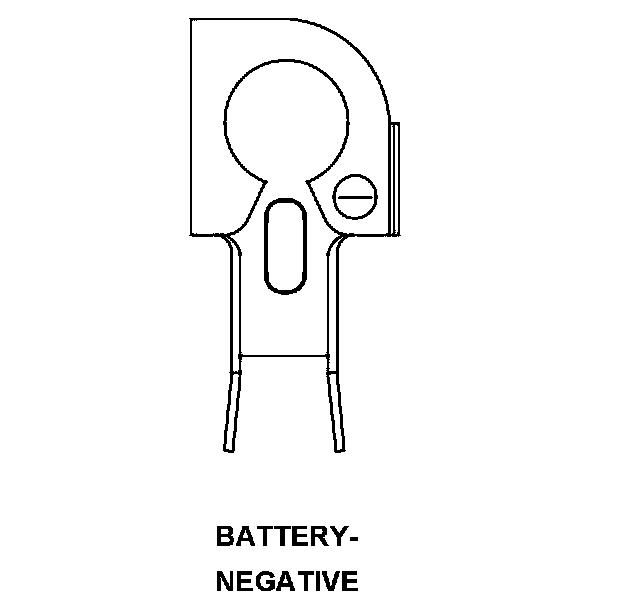

Name : BATTERY-NEGATIVE
Color :
# of pins : 1




Pin Circuit Description
1 Z1 4BK GROUND
Pin Circuit Description
1 Z2 8BK/WT GROUND
Pin Circuit Description
1 Z3 10BK GROUND

Component Location - 1




Component Location - 7






Connector:
Name : BATTERY-POSITIVE
Color :
# of pins : 1




Pin Circuit Description
1 A1 4RD FUSED B(+)
Pin Circuit Description
1 A8 4RD FUSED B(+)

Component Location - 1




Component Location - 7
