Alignment

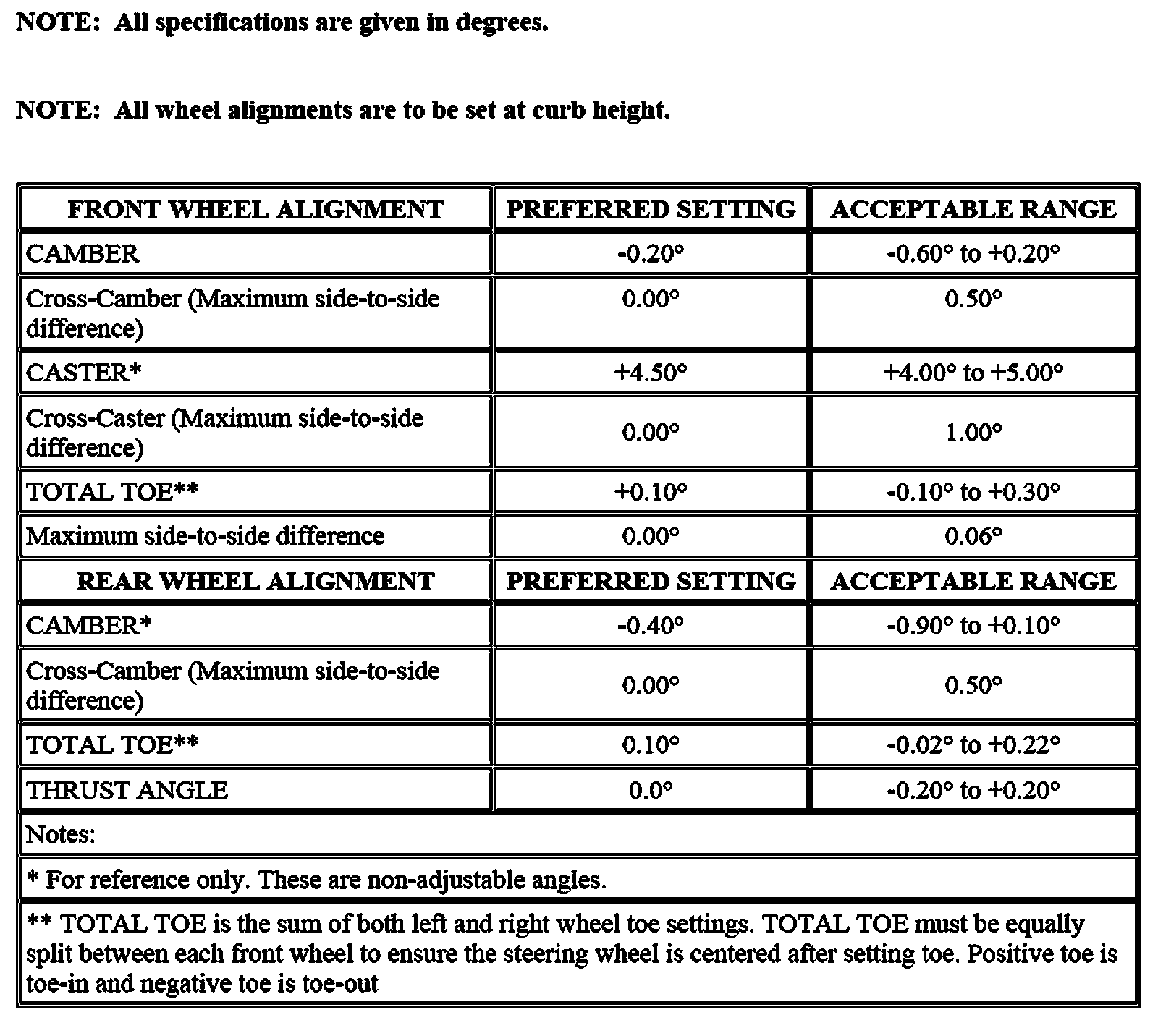

WHEEL ALIGNMENT

NOTE: All specifications are given in degrees.

NOTE: All wheel alignments are to be set at curb height. Service and Repair






CURB HEIGHT SPECIFICATIONS





Measure curb height at each wheel opening as follows:

1. Jounce the vehicle. Refer to above note.

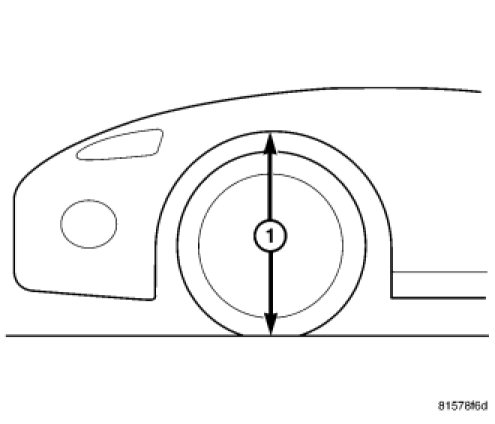

2. Measure (1) from the bottom inboard edge of the wheel opening fender lip directly above the wheel center (spindle) down to the floor (ground) or alignment rack surface.

NOTE: When measuring curb height, the maximum left-to-right differential is not to exceed 12.5 mm (0.5 in.).

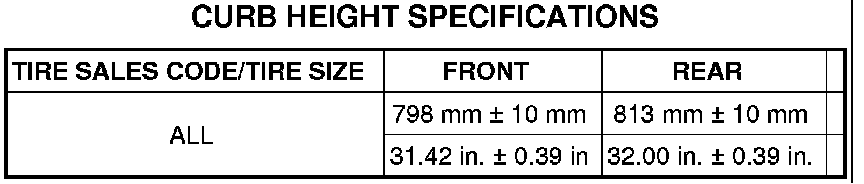

3. Compare the measurements to specifications listed in the following CURB HEIGHT SPECIFICATIONS chart.
