Combination Switch: Locations

Component ID: 398
Component : SWITCH-MULTIFUNCTION

Connector:

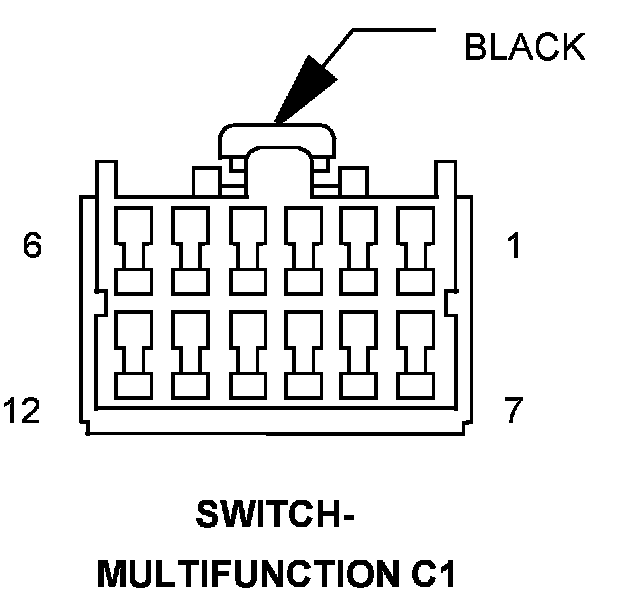

Name : SWITCH-MULTIFUNCTION C1
Color : BLACK
# of pins : 12




Pin Circuit Description
1 - -
2 - -
3 L306 20LB/WT RIGHT TURN SWITCH SENSE
4 L305 22WT/LB LEFT TURN SWITCH SENSE
5 E2 22OR/BR PANEL LAMPS DIMMER SIGNAL
6 L307 22BR/WT HEADLAMP SWITCH MUX SENSE
7 - -
8 L87 20WT/OR FRONT FOG SWITCH SENSE
9 Z102 20GY/BK GROUND
10 L38 20DB/WT OPTICAL HORN SIGNAL
11 L37 20WT/BR HIGH BEAM SWITCH SENSE
12 L900 22WT/YL HEADLAMP SWITCH MUX RETURN
