Removal

REMOVAL





1. Disconnect and isolate the negative battery cable.
2. Remove the instrument panel from the vehicle Instrument Panel - Removal.

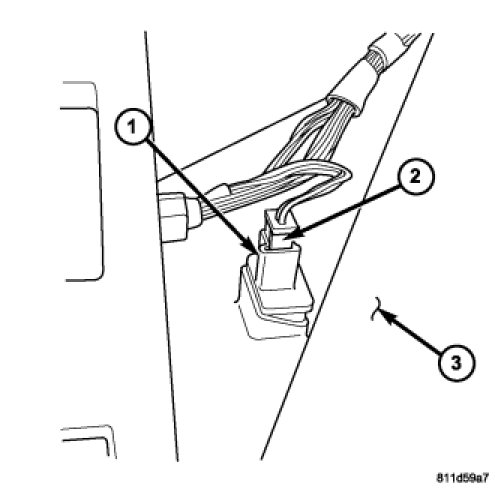

3. Disconnect the wire harness connector (2) from the evaporator temperature sensor (1) located on the top of the HVAC housing (3).
4. Remove the evaporator temperature sensor from the HVAC housing by carefully pulling straight out of the HVAC housing.
