Oil Pressure Sender: Locations

Component ID: 399

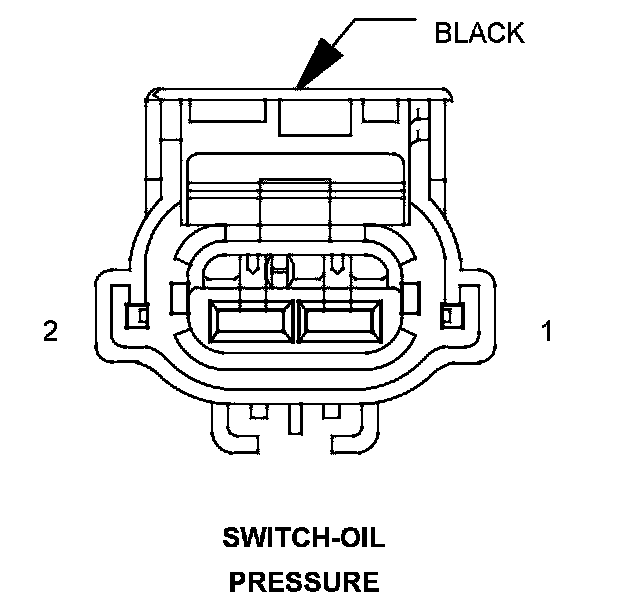

Component : SWITCH-OIL PRESSURE

Connector:
Name : SWITCH-OIL PRESSURE
Color : BLACK
# of pins : 2




Pin Circuit Description
1 G6 16VT/GY OIL PRESSURE SIGNAL
2 - -

Component Location - 11




Component Location - 13
