Steering Angle Sensor: Diagrams

Component ID: 372

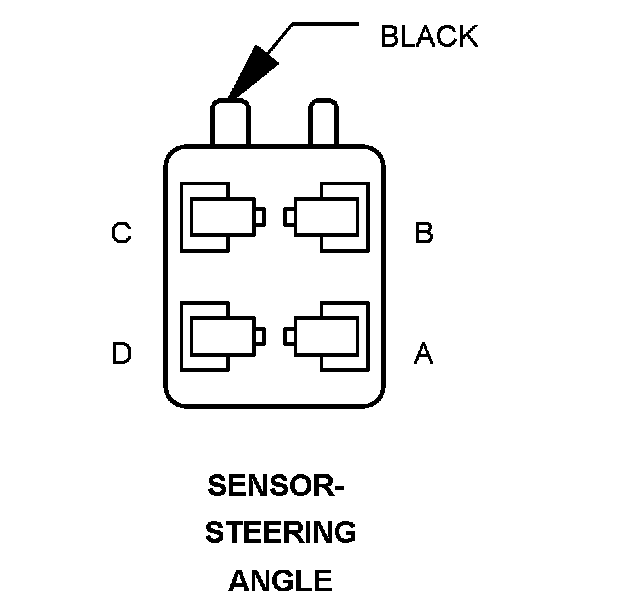

Component : SENSOR-STEERING ANGLE

Connector:
Name : SENSOR-STEERING ANGLE
Color : BLACK
# of pins : 4




Pin Circuit Description
1 D65 20WT/LG CAN C BUS (+)
2 Z18 18BK/LB GROUND
3 D64 20WT/LB CAN C BUS (-)
4 F500 18DG/PK FUSED RUN RELAY OUTPUT
