Installation

INSTALLATION





NOTE: When installed, arrow on dynamics sensor housing must point towards front of vehicle.

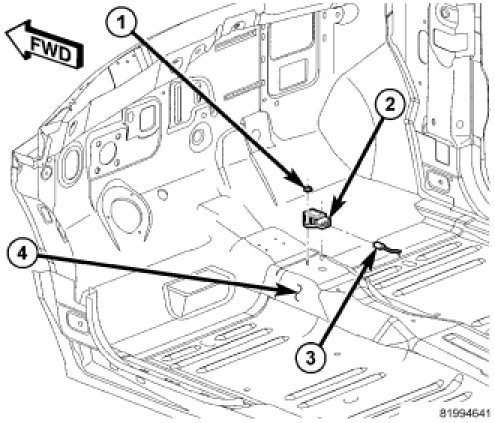

1. Install dynamics sensor (2) over studs mounted to floor pan tunnel (4).
2. Install two mounting nuts (1). Tighten nuts to 9 Nm (80 in. lbs.).
3. Connect wiring harness connector (3) to dynamics sensor (1).

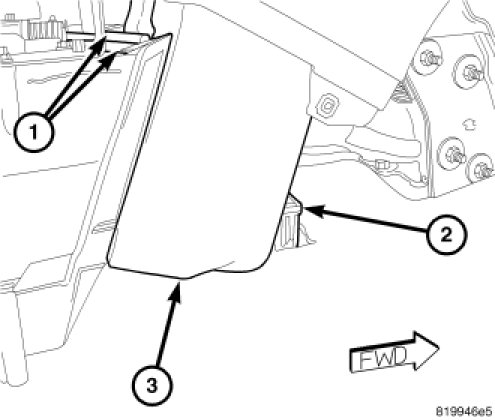

4. Install foam isolator (3). Make sure isolator is positioned properly over shifter cables (1) and dynamics sensor.

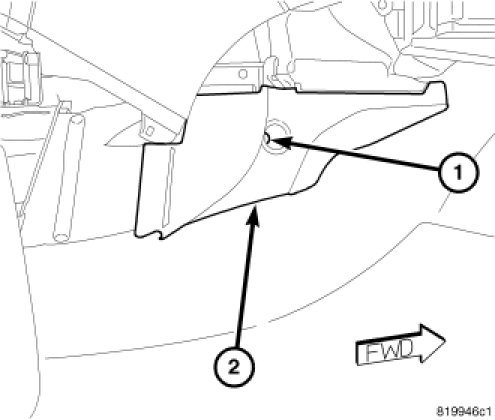

5. Install floor distribution air duct (2) and fastener (1).

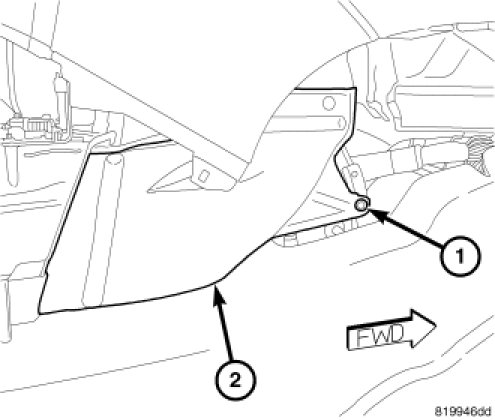

6. Install right side front floor console closeout panel (2) and fastener (1).
7. Install front floor console. Floor Console - Installation
8. Connect battery negative cable to battery post.
9. Perform Verification Test and clear any faults. Verification Tests
