Front Seats

DESCRIPTION

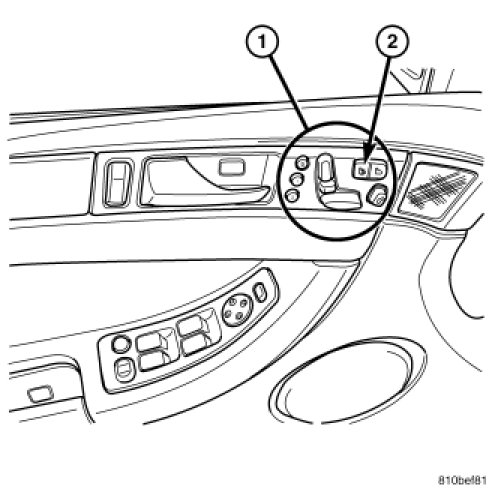

The heated seat switch assemblies (2) are mounted in the left and right side front door trim panels. One switch assembly is used for each front heated seat. The two momentary position switches, are incorporated into one large switch assembly (1) that also includes other switches. The driver side switch assembly includes the memory, heat and power seat switches as well as the adjustable foot pedal switch. The passenger side switch assembly includes the power seat and heated seat switches only. The heated seat switches provide a resistive multiplexed signal to the appropriate Door Module through separate hard wired circuits. Each switch has a low and high position so that both the driver and the front seat passenger can select a preferred seat heating level. Each switch has two Light-Emitting Diodes (LED) which light to indicate that the heater for the seat is turned on.

The heated seat switches and their LEDs cannot be repaired. If either switch or LED is inoperative or damaged, the entire switch assembly must be replaced.
