Switch-Remote Radio-Right

Component ID: 402

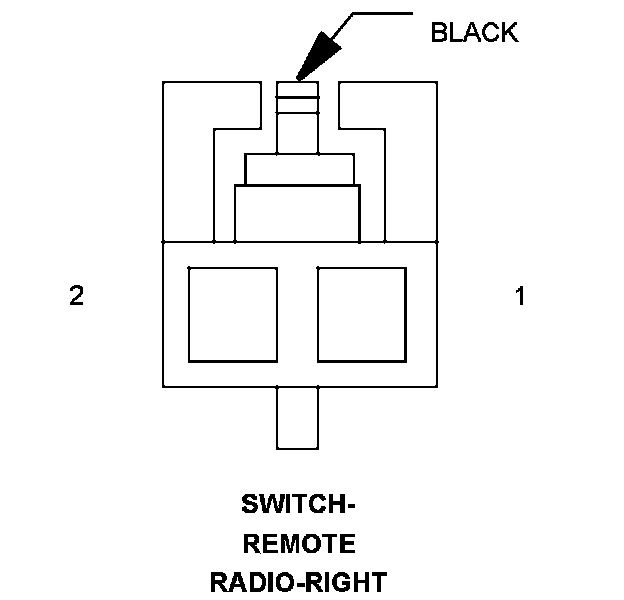

Component : SWITCH-REMOTE RADIO-RIGHT

Connector:
Name : SWITCH-REMOTE RADIO-RIGHT
Color : BLACK
# of pins : 2




Pin Circuit Description
1 X20 20GY/WT RADIO CONTROL MUX
2 X920 20GY/OR RADIO CONTROL MUX RETURN

Component Location - 22
