Seat Belt Buckle Switch: Diagrams

Component ID: 403
Component : SWITCH-SEAT BELT-DRIVER

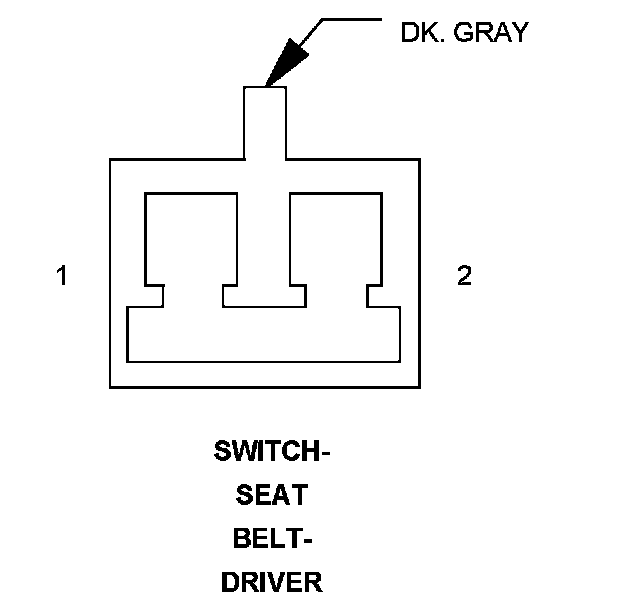

Connector:
Name : SWITCH-SEAT BELT-DRIVER
Color : DK. GRAY
# of pins : 2




Pin Circuit Description
1 G10 20VT/LG DRIVER SEAT BELT SWITCH SENSE
2 Z237 20BK/YL GROUND

Component Location - 27
