Second Row Seat Belt Retractor - Installation

INSTALLATION

SEAT BELT WEB STOP BUTTON

The only component of the seat belt and retractor that is available for individual service replacement is the plastic web stop button that prevents the latch plate from falling to the floor while in the stored position. Refer to the instructions supplied with the service kit for the proper web stop button replacement procedures.

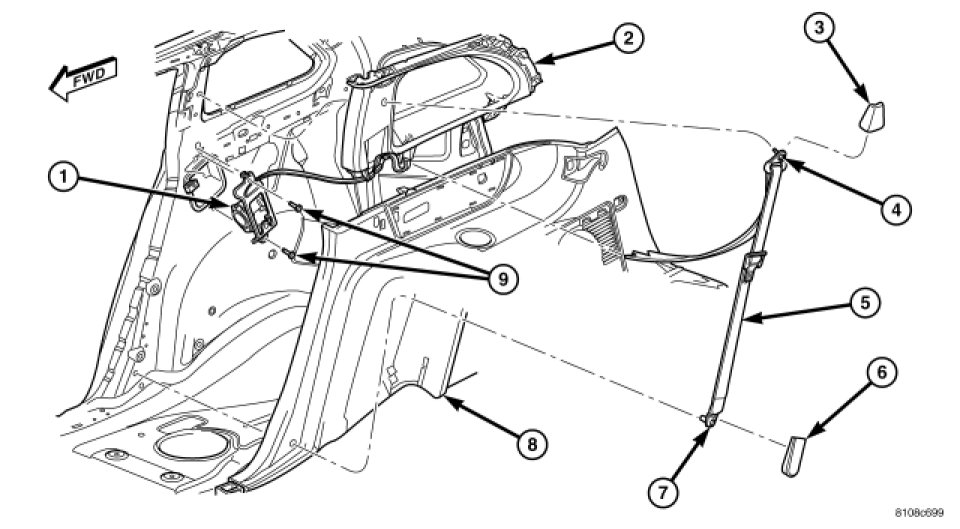

1. Position seat belt and retractor (5 and 1) in vehicle.
2. Install the turning loop retaining bolt (4) into the C-pillar. Tighten bolt to 40 Nm (30 ft. lbs.) and install seat belt turning loop cover (4).
3. Install the two seat belt retractor mounting bolts (9). Tighten bolts to 40 Nm (30 ft. lbs.).
4. Install the lower quarter trim panel (8) Console Shifter Bezel - Installation.
5. Install the second and third row lower seat belt anchor bolts (7). Tighten bolts to 40 Nm (30 ft. lbs.) and then install lower anchor bolt covers (6).
6. Install the second and third row seats into vehicle on the side that the seat belt and retractor are being serviced.
