Third Row

INSTALLATION





1. Slide the seat belt buckle (4) onto the mounting stud.

WARNING: A thread locking compound is applied to the threads at the factory. Once the retaining nut is removed a thread locking compound should be reapplied during installation.

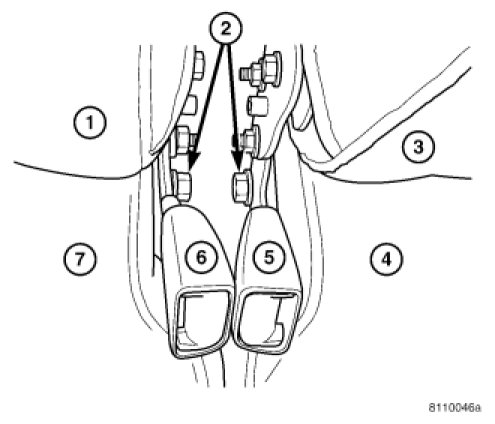

2. Reach down between seats (4 and 7) and install the buckle half retaining nut (2) onto the seat cushion frame. Tighten nut to 40 Nm (30 ft. lbs.).
3. Install trim cover and retaining screw.
