Front

INSTALLATION





1. Slide buckle half down through side cushion trim and onto the mounting stud.

WARNING: A thread locking compound is applied to the threads at the factory. Once the retaining nut is removed a thread locking compound should be reapplied during installation.

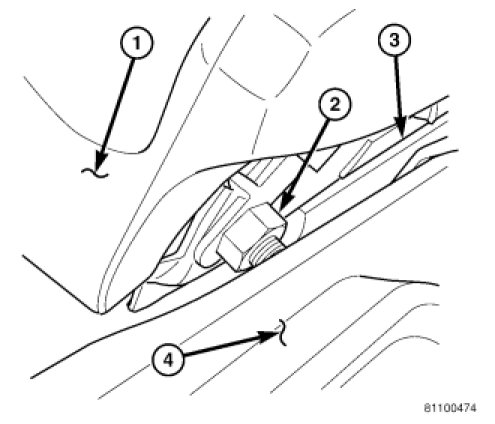

2. Install the buckle half retaining nut (2). Tighten nut to 40 Nm (30 ft. lbs.).
3. Move seat to original customer position.

NOTE: It may have been necessary to remove the front seat to remove buckle off mounting stud. If so, Seat - Installation
