DESCRIPTION

The occupant restraints for this model include both active and passive types. Active restraints are those which require the vehicle occupants to take some action to employ, such as fastening a seat belt; while passive restraints require no action by the vehicle occupants to be employed.

ACTIVE RESTRAINTS

The active restraints include:

- Front Seat Belts - Both front seating positions are equipped with three-point seat belt systems employing a lower B-pillar mounted inertia latch-type retractor, height-adjustable upper B-pillar mounted turning loops, a fixed lower seat belt anchor secured to the lower B-pillar, and a traveling end-release buckle secured to the inboard side of the seat cushion frame. The driver side front seat belt retractor includes an integral seat belt switch that detects whether the driver side front seat belt has been fastened.
- Rear Seat Belts - Both outboard rear second and third seating positions are equipped with three-point seat belt systems. The outboard seating position belts employ a lower C or D-pillar mounted inertia latch-type retractor, a fixed position upper C or D-pillar mounted turning loop, and a fixed lower seat belt anchor secured to the inboard side of the seat cushion frame.
- Child Restraint Anchors - Also equipped in this vehicle are two, fixed-position, child seat upper tether anchors located on the lower seat cushion, in the rear of the lower seat cushion. There is one anchor integral to the back of the third row seat back panel, one on each seat back panel. Two lower second row anchors are also provided for each rear outboard seating position. The lower anchors are integral to the seat cushion frame and are accessed from the front of the second row seat where the seat back meets the seat cushion.

PASSIVE RESTRAINTS

The passive restraints available for this model include the following:

Dual Front Airbags - Multistage driver, front passenger, and driver knee blocker airbags are available for this model. This airbag system is a passive, inflatable, Supplemental Restraint System (SRS) and vehicles with this equipment can be readily identified by the "SRS - AIRBAG" logo molded into the driver airbag trim cover in the center of the steering wheel and also into the passenger airbag door on the instrument panel above the glove box. Vehicles with the airbag system can also be identified by the airbag indicator, which will illuminate in the instrument cluster for about seven seconds as a bulb test each time the ignition switch is turned to the ON position. A pyrotechnic-type seat belt tensioner is integral to the driver and passenger front seat belt retractor of all models equipped with dual front airbags.





Curtain Airbags - Curtain airbags are available for this model when it is also equipped with dual front airbags. This airbag system is a passive, inflatable, Supplemental Restraint System (SRS) and vehicles with this equipment can be readily identified by a molded identification trim button with the "SRS - AIRBAG" logo located on the headliner above each B-pillar.

This vehicle is equipped with a Frontal Impact Airbag System, which utilizes the driver/passenger airbags, driver knee blocker airbag, and seat belt tensioners. This system is designed to protect occupants in the event of a front impact collision. These airbags and seat belt tensioners are all serviceable parts. If these pyrotechnics are deployed or defective, they must be replaced, as well as the Occupant Restraint Controller (ORC) must be diagnosed following procedures outlined in the diagnostic information.





The Driver and Passenger Airbag System was designed to reduce the likelihood of injury or death in frontal collisions. Each separate system is supplemental or Passive to the primary restraint device, which are the seat belts.

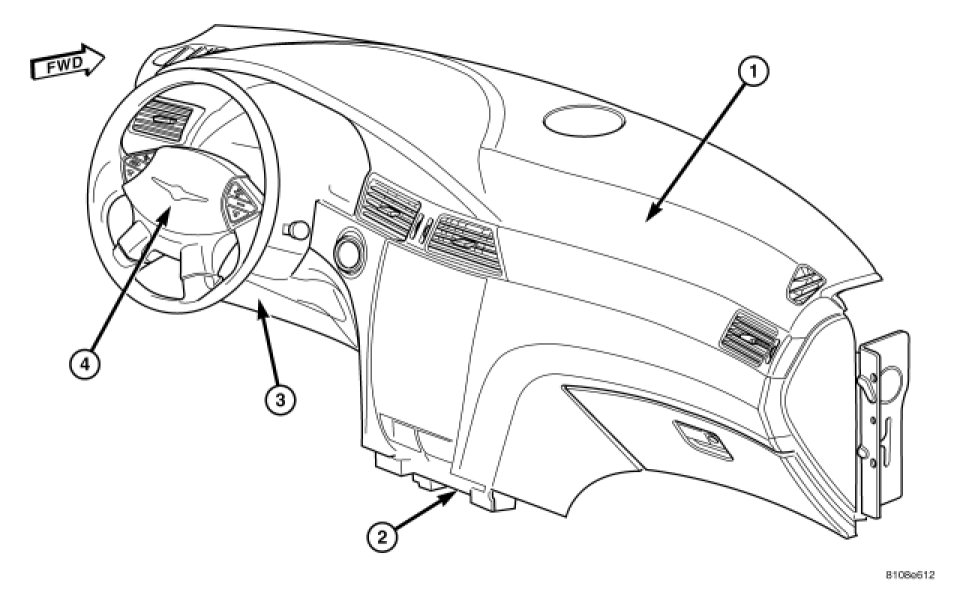

- Airbag Indicator - The airbag indicator is integral to the Instrument Cluster, which is located on the instrument panel in front of the driver.
- Clockspring - The clockspring is located near the top of the steering column, directly beneath the steering wheel (4).
- Curtain Airbag - A side curtain airbag is located on each inside roof side rail above the headliner, and extends from the A-pillar to just beyond the D-pillar.
- Driver Airbag - The driver airbag is located in the center of the steering wheel, beneath the driver airbag trim cover (4).
- Front Impact Sensor - Two front impact sensors are used on vehicles equipped with dual front airbags, one left side and one right side. The sensors are located on the rail tips, rearward of the bumper attachments.
- Knee Blocker Airbag - The driver knee blocker airbag is secured to the instrument panel behind the steering column opening cover (3).
- Occupant Restraint Controller - The Occupant Restraint Controller (ORC) is also sometimes referred to as the Airbag Control Module (ACM). The ORC is located on a mount on the floor transmission tunnel just underneath the instrument panel center stack (2).
- Passenger Airbag - The passenger airbag is located on the instrument panel, beneath the instrument panel top pad and above the glove box on the passenger side of the vehicle (1).
- Passenger Knee Blocker - The passenger knee blocker is a structural reinforcement that is integral to and concealed within the glove box door.
- Seat Belt Tensioner - A seat belt tensioner is integral to both front seat belt retractors. The seat belt retractors are secured to the lower B-pillars.
- Side Impact Sensors - Six side impact sensors are used on vehicles equipped with the curtain airbags, two left side and two right side. The first row side impact sensor is located in the B-pillar, just above the front seat belt retractor. The second row side impact sensor is located in the C-pillar.

The ORC, the OCM, and the cluster each contain a microprocessor and programming that allow them to communicate with each other using the Programmable Communications Interface (PCI) data bus network. This method of communication is used by the ORC for control of the airbag indicators.
