Clockspring Assembly / Spiral Cable: Locations

Component ID: 59
Component : CLOCKSPRING

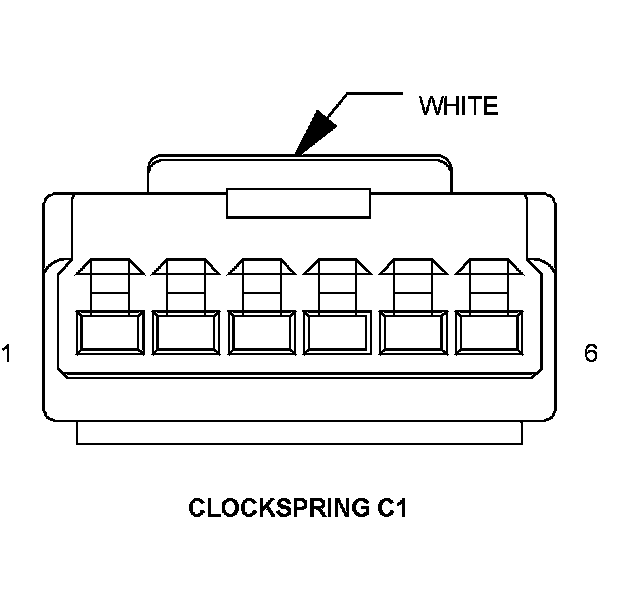

Connector:
Name : CLOCKSPRING C1
Color : WHITE
# of pins : 6




Pin Circuit Description
1 X3 20DG/VT HORN SWITCH SENSE
2 V38 20VT/OR S/C SIGNAL 2
3 K975 20BR/OR S/C SWITCH GROUND
4 V37 20VT S/C SIGNAL 1
5 X20 22GY/WT RADIO CONTROL MUX
6 X920 22GY/OR RADIO CONTROL MUX RETURN

Component Location - 14




Component Location - 21




Component Location - 22

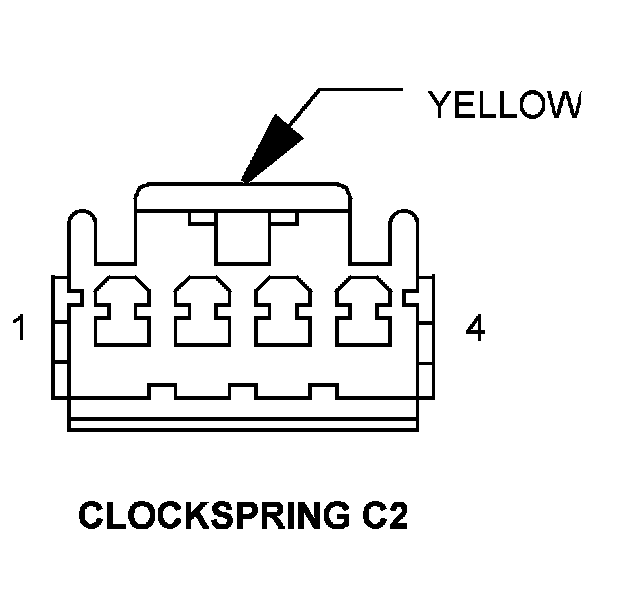

Connector:
Name : CLOCKSPRING C2
Color : YELLOW
# of pins : 4




Pin Circuit Description
1 R61 18LG/VT DRIVER SQUIB 2 LINE 2
2 R63 18LG/WT DRIVER SQUIB 2 LINE 1
3 R43 18LG/BR DRIVER SQUIB 1 LINE 2
4 R45 18LG/OR DRIVER SQUIB 1 LINE 1

Component Location - 14




Component Location - 21




Component Location - 22

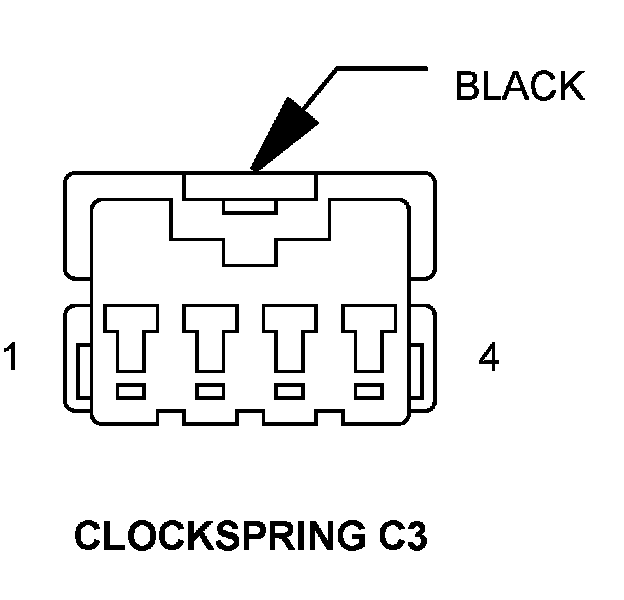

Connector:
Name : CLOCKSPRING C3
Color : BLACK
# of pins : 4




Pin Circuit Description
1 X20 20GY/WT RADIO CONTROL MUX
Pin Circuit Description
1 X20 20GY/WT RADIO CONTROL MUX
2 X920 20GY/OR RADIO CONTROL MUX RETURN
2 X920 20GY/OR RADIO CONTROL MUX RETURN
3 V37 20VT S/C SIGNAL 1
3 V37 20VT S/C SIGNAL 1
4 K975 22BR/OR S/C SWITCH GROUND
4 K975 22BR/OR S/C SWITCH GROUND

Component Location - 14




Component Location - 21




Component Location - 22

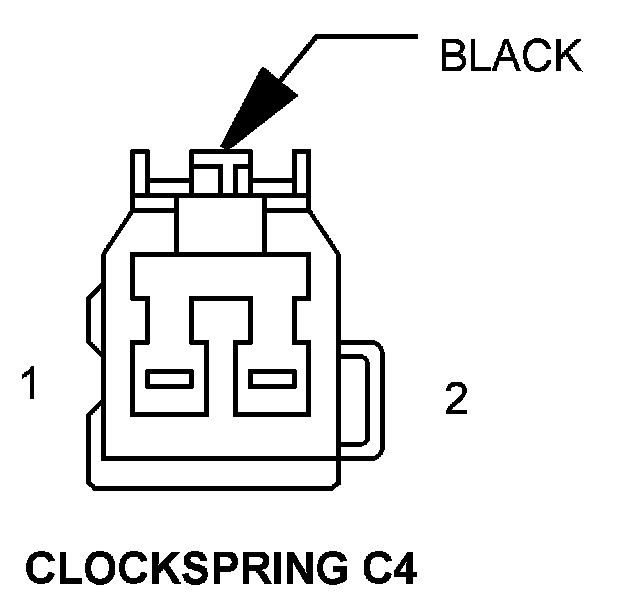

Connector:
Name : CLOCKSPRING C4
Color : BLACK
# of pins : 2




Pin Circuit Description
1 V38 20VT/OR S/C SIGNAL 2
Pin Circuit Description
1 V38 20VT/OR S/C SIGNAL 2
2 X3 20DG/VT HORN SWITCH SENSE

Component Location - 14




Component Location - 21




Component Location - 22
