Removal

REMOVAL





1. Open hood.
2. Disconnect and isolate the battery negative cable.

WARNING: Wait two minutes for the airbag system reserve capacitor to discharge before beginning any airbag system or component service. Failure to do so may result in accidental airbag deployment or personal.

3. Remove the driver airbag Driver Airbag - Removal.

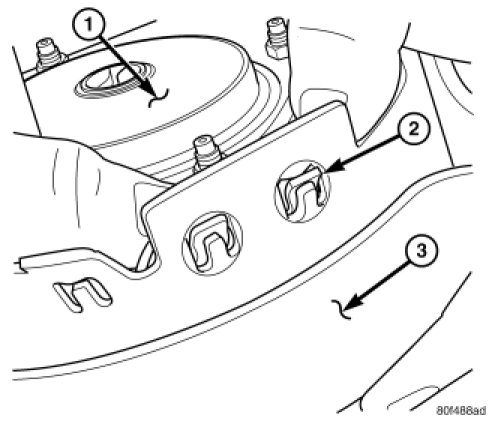

4. With driver airbag removed, pick a corner and push down on the inflator (1) or latch hook mounting plate until the latch hooks (2) push out of the driver airbag cover (3).




5. Remove driver airbag from driver airbag cover.
