Airbag-Side Curtain-Right

Component ID: 10

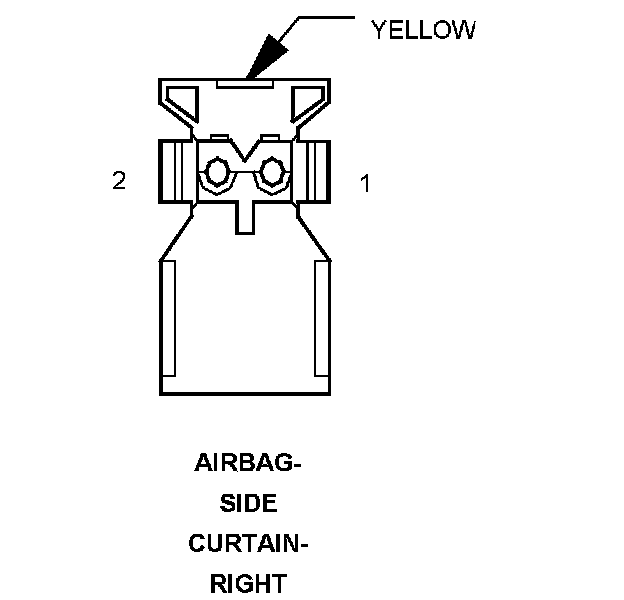

Component : AIRBAG-SIDE CURTAIN-RIGHT

Connector:
Name : AIRBAG-SIDE CURTAIN-RIGHT
Color : YELLOW
# of pins : 2




Pin Circuit Description
1 R2 18WT/LB RIGHT CURTAIN SQUIB LINE 2
2 R4 18OR/LB RIGHT CURTAIN SQUIB LINE 1

Component Location - 31
