Airbag-Passenger Squib

Component ID: 8
Component : AIRBAG-PASSENGER SQUIB

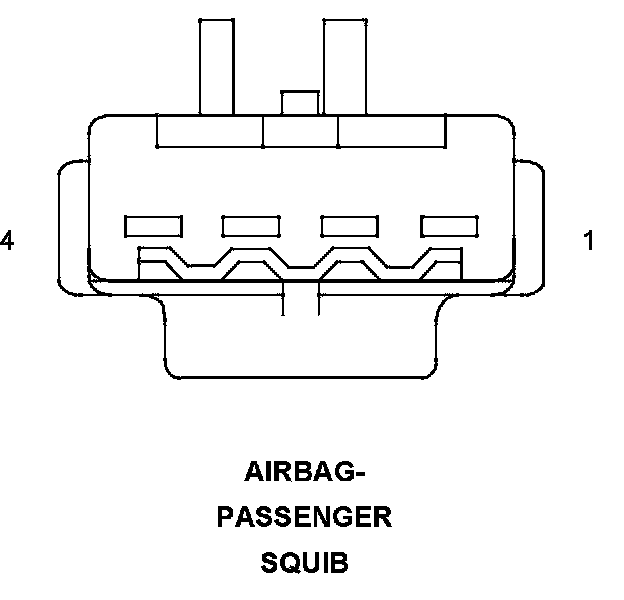

Connector:
Name : AIRBAG-PASSENGER SQUIB
Color :
# of pins : 4




Pin Circuit Description
1 R44 18LB/OR PASSENGER SQUIB 1 LINE 1
2 R42 18LB/BR PASSENGER SQUIB 1 LINE 2
3 R64 18LB/TN PASSENGER SQUIB 2 LINE 1
4 R62 18LG/DB PASSENGER SQUIB 2 LINE 2

Component Location - 14




Component Location - 15
