Airbag-Knee Blocker-Driver

Component ID: 7

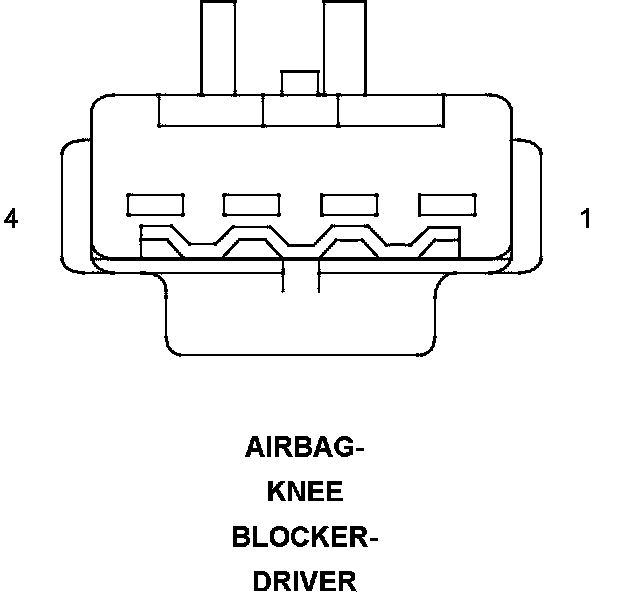

Component : AIRBAG-KNEE BLOCKER-DRIVER

Connector:
Name : AIRBAG-KNEE BLOCKER-DRIVER
Color :
# of pins : 4




Pin Circuit Description
1 - -
2 - -
3 R9 18LB/YL DRIVER KNEE BLOCKER SQUIB LINE 2
4 R11 18DB/LB DRIVER KNEE BLOCKER SQUIB LINE 1

Component Location - 14




Component Location - 15




Component Location - 21
