Airbag-Driver Squib 1

Component ID: 5
Component : AIRBAG-DRIVER SQUIB 1

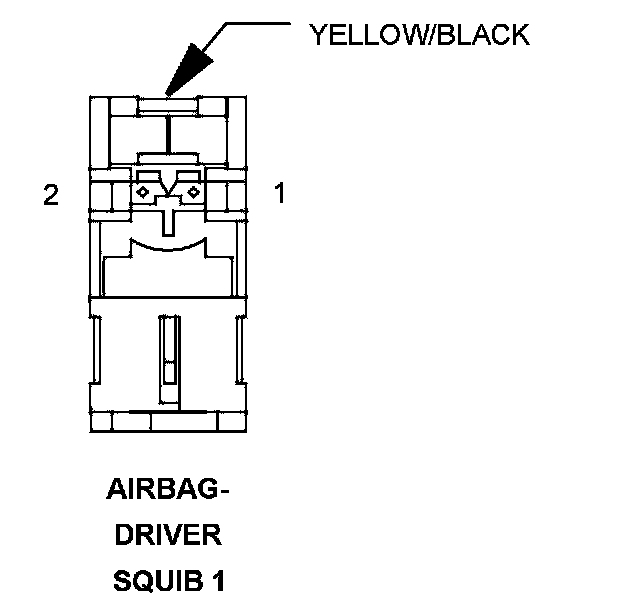

Connector:
Name : AIRBAG-DRIVER SQUIB 1
Color : YELLOW/BLACK
# of pins : 2




Pin Circuit Description
1 R43 20LG/BR DRIVER SQUIB 1 LINE 2
2 R45 20LG/OR DRIVER SQUIB 1 LINE 1

Component Location - 22
