Installation

INSTALLATION





NOTE: Refer to the fuse and relay layout map on the inside of the cover of the integrated power module (IPM) for EBL relay location.

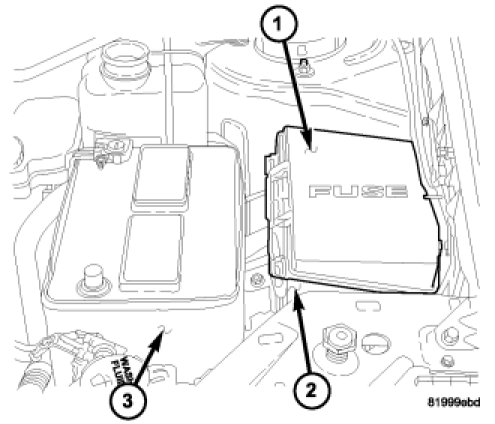

1. Position the EBL relay to the receptacle in the IPM (2) located near the battery (3) in the engine compartment.
2. Align the EBL relay terminals with the terminal cavities in the IPM receptacle and push down firmly on the relay until the terminals are fully seated.
3. Install the cover (1) onto the IPM (2).
4. Reconnect the negative battery cable.
