Relay-Booster Fan-Rear

Component ID: 224

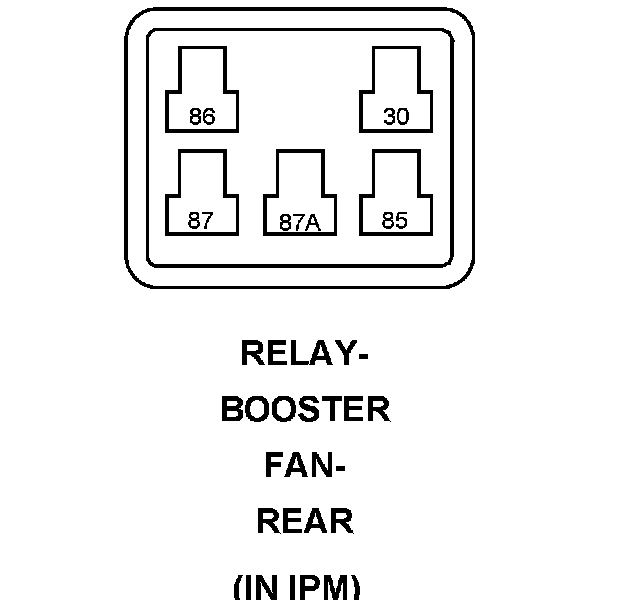

Component : RELAY-BOOSTER FAN-REAR

Connector:
Name : RELAY-BOOSTER FAN-REAR
Color :
# of pins : 0




30 INTERNAL B(+)
85 INTERNAL B(+)
86 INTERNAL REAR BOOSTER FAN RELAY CONTROL
87 C51 18LB/BR FUSED REAR BOOSTER FAN RELAY OUTPUT
87A - -
