Installation

INSTALLATION





CAUTION: The relay mounting location is designed to dissipate heat. Make sure the relay is securely attached to prevent relay "thermal" shutdown and relay damage, resulting in possible engine overheating.

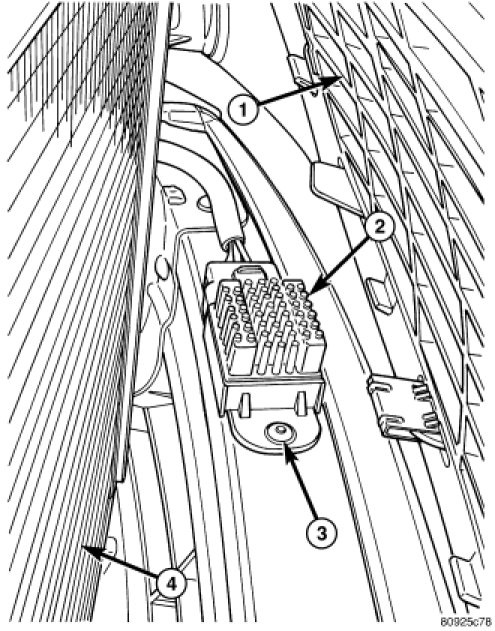

1. Position relay and install a new rivet.
2. Connect electrical connector to relay.
3. Install front fascia Grille - Installation.
4. Connect negative cable to battery.
