Radiator Cooling Fan Motor Relay: Locations

Component ID: 230

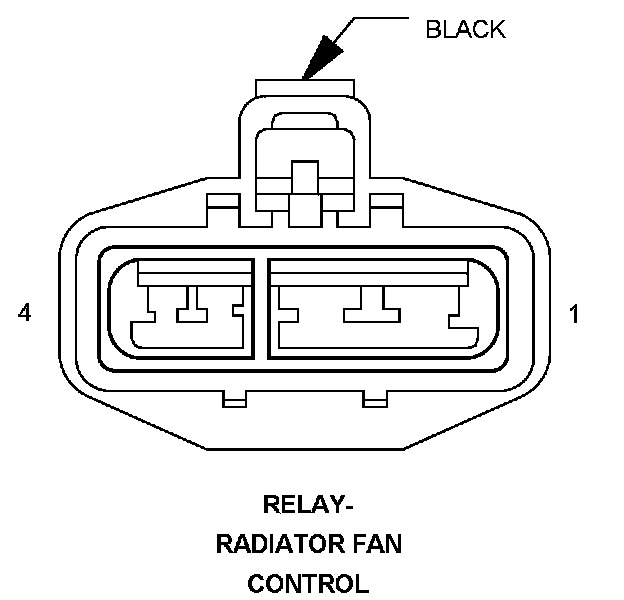

Component : RELAY-RADIATOR FAN CONTROL

Connector:
Name : RELAY-RADIATOR FAN CONTROL
Color : BLACK
# of pins : 4




Pin Circuit Description
1 A112 12OR/RD FUSED B(+)
2 N23 12DB/DG RADIATOR FAN RELAY OUTPUT
3 Z723 18BK/DG GROUND
4 K173 18BR/VT RAD FAN RELAY CONTROL

Component Location - 5
