Installation

INSTALLATION

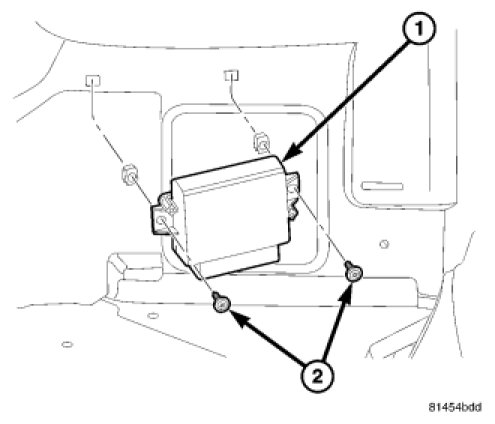

1. Position the Park Assist Module (1) and install the two attaching screws (2). Tighten screws to 3.5 Nm (30 in. lbs.).

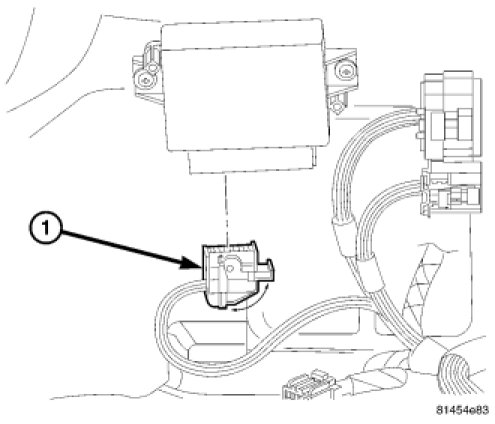

2. Connect the Park Assist Module electrical connector (1).
3. Install the left quarter trim panel Console Shifter Bezel - Installation.
4. Connect the battery negative cable.
