Crankshaft Position Sensor: Locations

Component ID: 343
Component : SENSOR-CRANKSHAFT POSITION

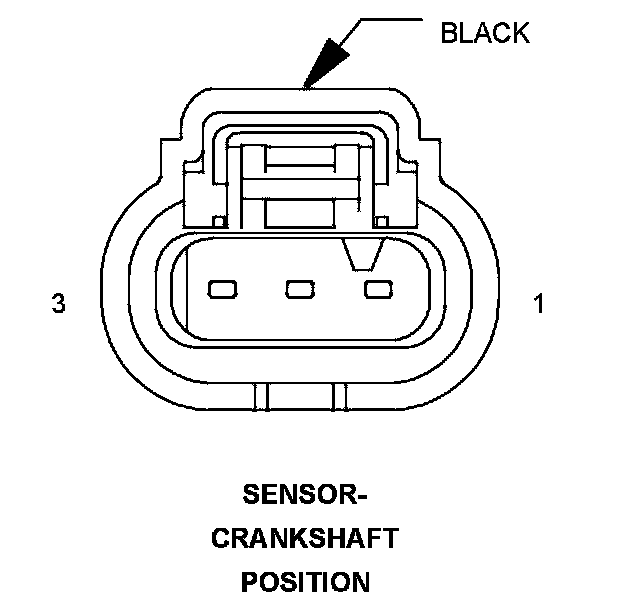

Connector:
Name : SENSOR-CRANKSHAFT POSITION
Color : BLACK
# of pins : 3




Pin Circuit Description
1 F855 20PK/YL 5 VOLT SUPPLY
2 K900 20DB/DG SENSOR GROUND
3 K24 20BR/LB CKP SIGNAL

Component Location - 1




Component Location - 11
