Throttle Body - Removal

4.0L





1. Disconnect negative cable from battery
2. Remove the engine cover.
3. Remove the air cleaner box.

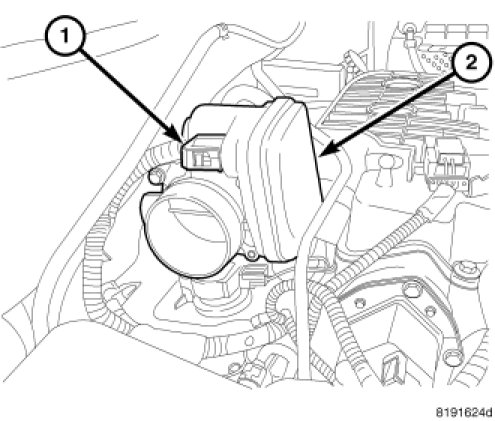

4. Disconnect electrical connectors from throttle body.

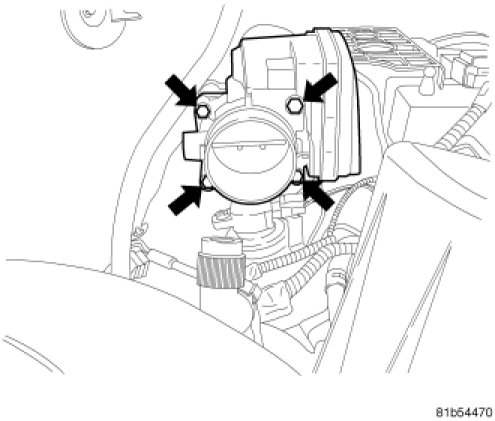

5. Remove throttle body bolts.
6. Remove throttle body.
7. Remove throttle body seal.
