Removal

REMOVAL





1. Disconnect and isolate negative battery cable at battery.

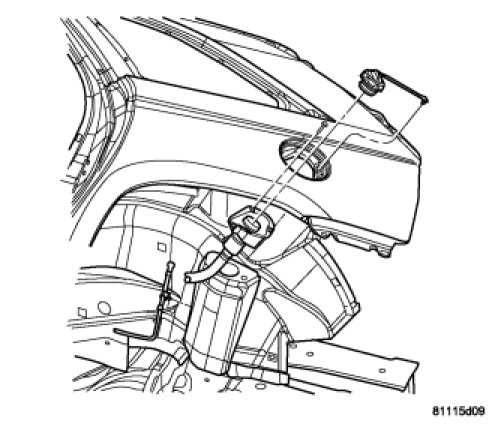

2. Remove fuel cap from fuel fill tube.
3. Remove fuel fill tube screws from fuel door and quarter panel assembly.




4. Remove left rear wheelhouse splash shield, Rear Wheelhouse Splash Shield - Removal.

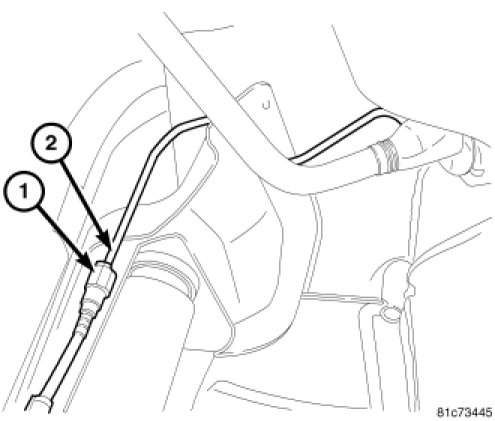

5. Disconnect fuel vapor recirculation line (1) from metal fuel fill tube line (2).

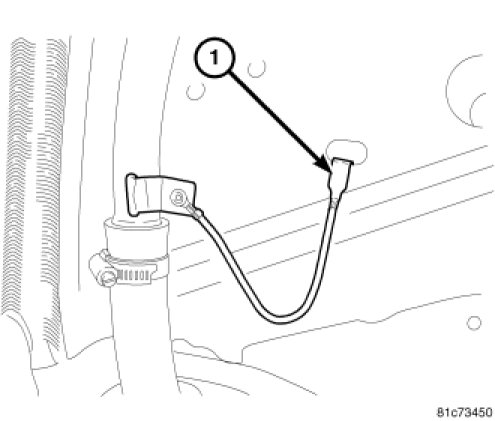

6. Remove fuel fill tube ground strap (1) from body.




7. Loosen clamp (2), remove fuel fill hose (1) from fuel tank (3).
