Fuel Pump: Locations

Component ID: 181
Component : MODULE-FUEL PUMP

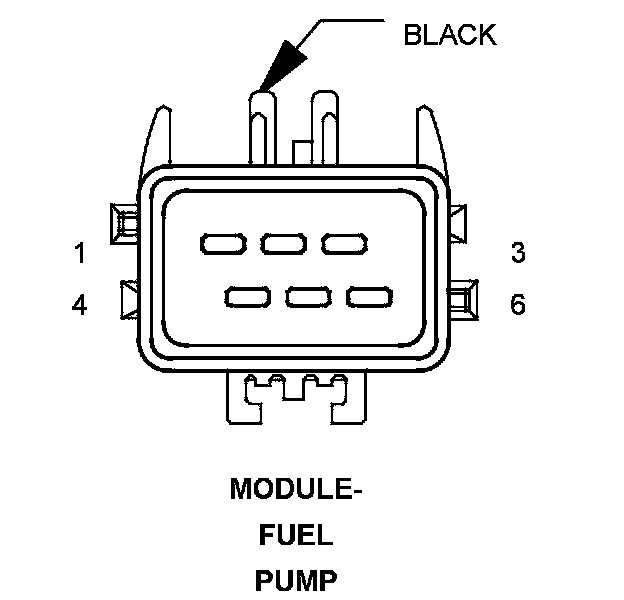

Connector:
Name : MODULE-FUEL PUMP
Color : BLACK
# of pins : 6




Pin Circuit Description
1 N1 16DB/OR FUEL PUMP RELAY OUTPUT
2 N4 20DB/YL FUEL LEVEL SIGNAL 1
3 N5 20DB/WT FUEL LEVEL SIGNAL 2
4 - -
5 Z210 20BK/LB GROUND
6 Z201 16BK GROUND

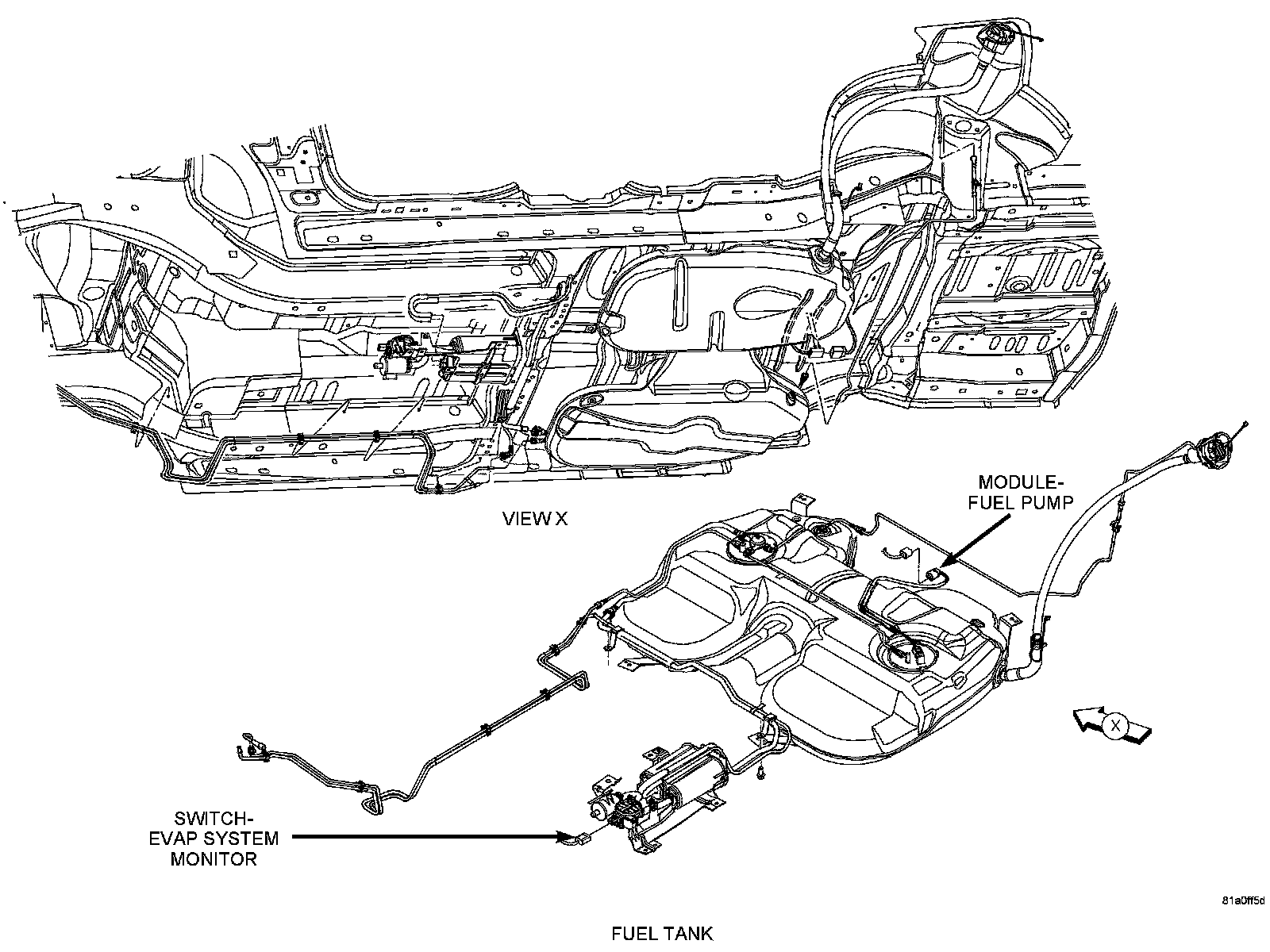

Component Location - 30




Component Location - 35
