Removal

REMOVAL





NOTE: The fuel pressure regulator is on the passenger side of the fuel tank.

1. Release the fuel pressure, refer to the Fuel Pressure Release Procedure. Service and Repair
2. Disconnect negative battery cable.
3. Remove fuel tank, Fuel Tank - Removal.
4. Vacuum area before removing module lock ring.
5. Disconnect lines from top of the module.




6. Remove module lock ring.

NOTE: Use a brass punch to remove the 1/4 turn lock ring.

7. Drain fuel tank, use an approved gasoline draining station.
8. Remove module from fuel tank.

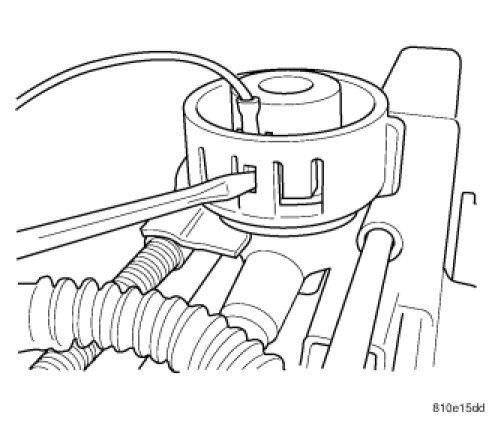

9. Remove wire from side of regulator, depress tab on the connector in order to remove the ground wire.

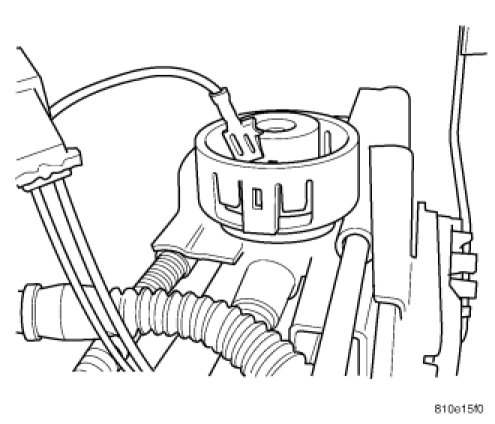

10. Ground wire removed.
11. Use a socket to compress the 4 tabs that retain regulator.
12. Pry up regulator and remove regulator and o-rings.
