Leak Detector: Locations

Component ID: 392

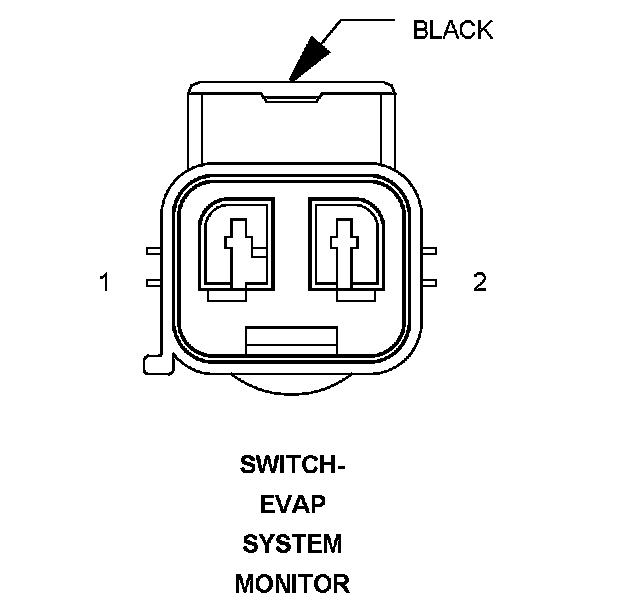

Component : SWITCH-EVAP SYSTEM MONITOR

Connector:
Name : SWITCH-EVAP SYSTEM MONITOR
Color : BLACK
# of pins : 2




Pin Circuit Description
1 Z166 18BK/WT GROUND
2 K107 20VT/WT ESM SIGNAL

Component Location - 1




Component Location - 35
