Home >> Chrysler >> 2008 >> Pacifica V6-4.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Manifold Pressure/Vacuum Sensor >> Service and Repair >> Installation

Installation







4.0L

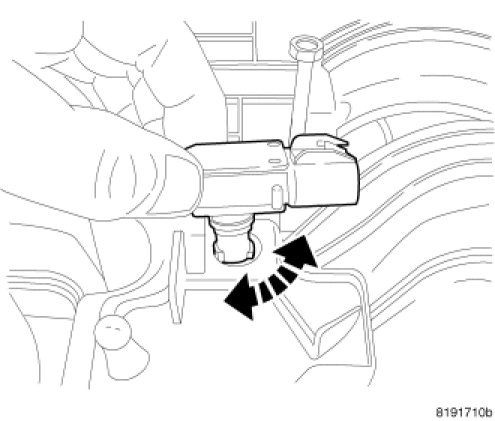

1. Install sensor and rotate.

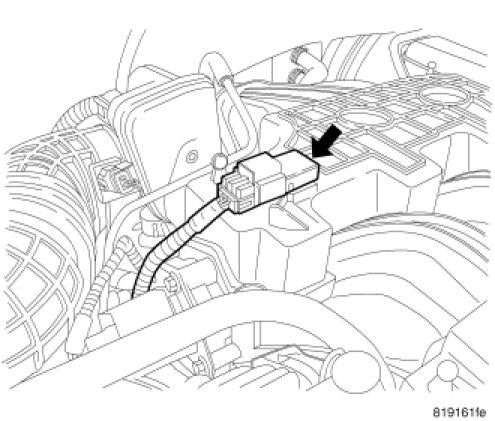

2. Attach electrical connector to sensor.
3. Connect negative battery cable.
