Data Link Connector: Diagrams

Component ID: 71

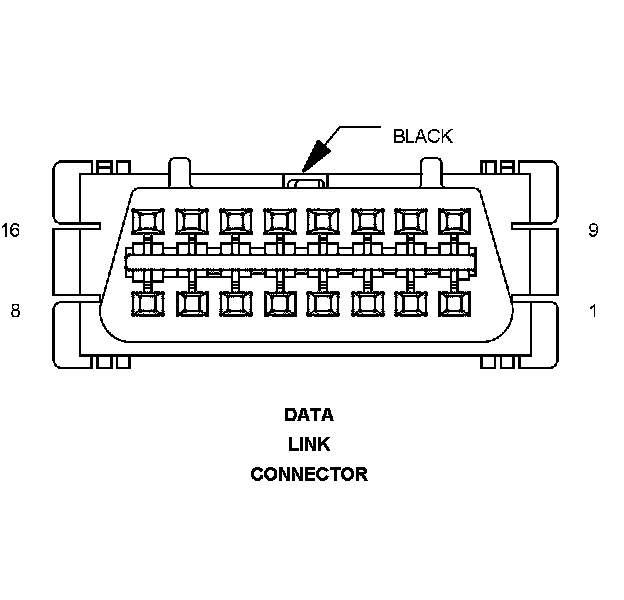

Component : DATA LINK CONNECTOR

Connector:
Name : DATA LINK CONNECTOR
Color : BLACK
# of pins : 16




Pin Circuit Description
1 - -
2 D25 20WT/VT PCI BUS
3 - -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT GROUND
6 D72 20WT/LB DIAGNOSTIC CAN C (+)
7 - -
8 - -
9 D123 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 - -
13 - -
14 D71 20WT/DB DIAGNOSTIC CAN C (-)
15 - -
16 A105 20DB/RD FUSED B(+)

Component Location - 14




Component Location - 15




Component Location - 21
