Installation







INSTALLATION

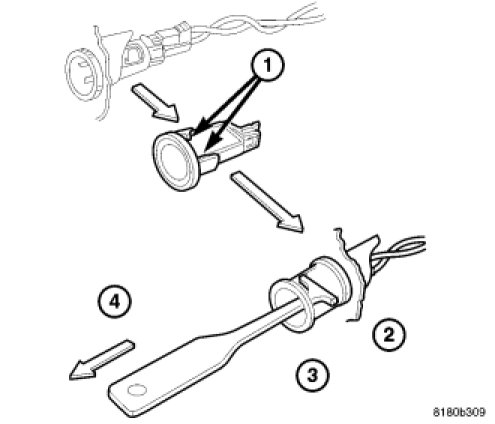

1. Install base mount ring.
2. Connect the base wires.
3. Firmly snap base into position inside of instrument panel.
4. Connect the battery negative cable.
