Rear

INSTALLATION

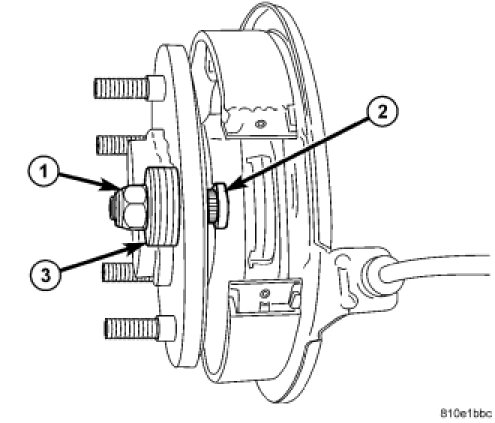

1. Install replacement wheel stud (2) into flange of hub and bearing from rear.
2. Install a stack of washers (3) (approximately 5, depending on thickness) over stud, then install a standard wheel mounting (lug) nut (1) on stud with flat side of nut against washers.
3. Tighten wheel mounting nut, pulling wheel stud into flange of hub and bearing. Once head of stud is fully seated against rear of hub flange, remove nut and washers from wheel stud.

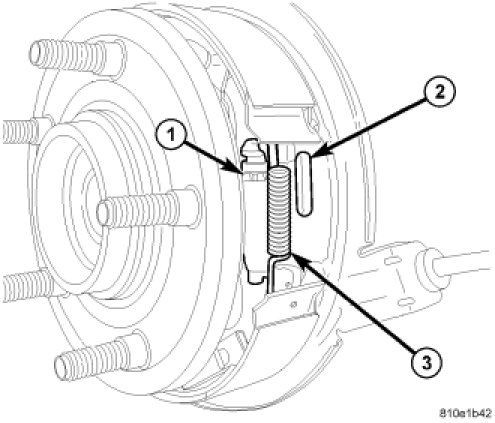

4. Install parking brake shoe adjuster (1) between upper and lower parking brake shoes. Position end of adjuster with star wheel upward. Once in place, slide upper shoe downward against adjuster mounting slot, taking up any slack between two pieces.
5. Using appropriate tools, install spring (3) at adjuster.




NOTE: When measuring brake drum diameter, diameter should be measured in center of shoe contact surface area.

6. Using Brake Shoe Gauge, Special Tool C-3919, or equivalent, measure inside diameter of parking brake drum portion of rotor.




7. Place Gauge (1) over parking brake shoes at widest point.
8. Using adjuster star wheel (2), adjust parking brake shoes until linings on both park brake shoes just touch jaws on gauge. This will give a good preliminary adjustment of parking brake shoes, before a final adjustment is made at end of this procedure.
9. Install brake rotor and components removed to access it. Brake Rotor - Installation
10. Adjust parking brake shoes. Adjustments
11. Lower vehicle.
12. Road test vehicle to ensure proper operation of the brakes.
