Accessory Drive Belt - Removal

4.0L ENGINE





1. Raise vehicle on hoist.
2. Remove the drive belt shield.




WARNING: Do not allow drive belt tensioner to snap back, as damage to tensioner and/or personal injury could result.

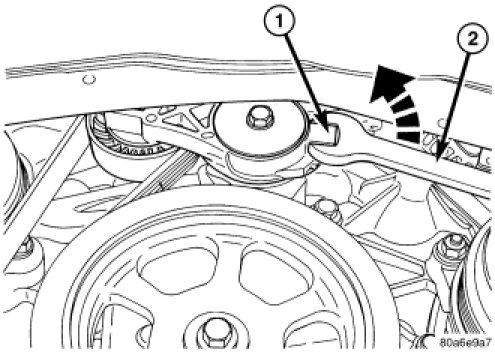

3. Position a wrench on the belt tensioner lug.
4. Release belt tension by rotating the tensioner counterclockwise.
5. Remove the drive belt.
6. Carefully return tensioner to its relaxed position.
