Lamp-Park/Turn-Right Front

Component ID: 153

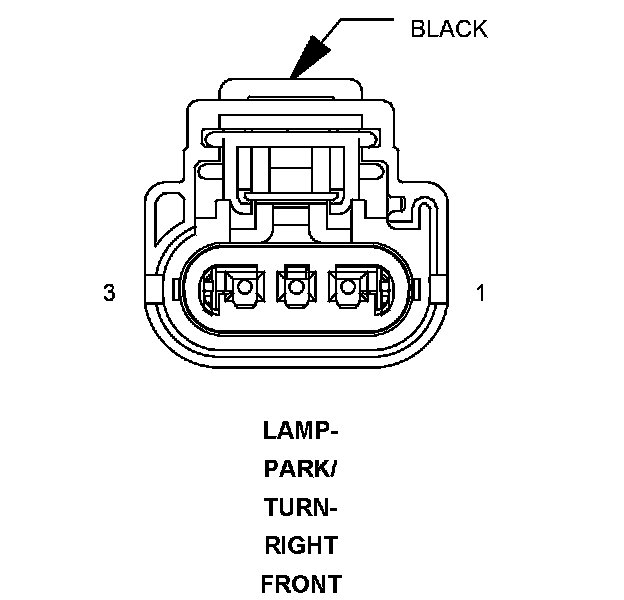

Component : LAMP-PARK/TURN-RIGHT FRONT

Connector:
Name : LAMP-PARK/TURN-RIGHT FRONT
Color : BLACK
# of pins : 3




Pin Circuit Description
1 Z378 20BK/TN GROUND
2 L78 20WT/LB RIGHT FRONT PARK LAMP DRIVER
3 L60 18WT/TN RIGHT FRONT TURN SIGNAL LAMP DRIVER

Component Location - 3
